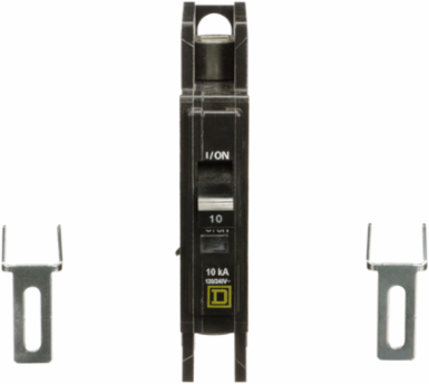

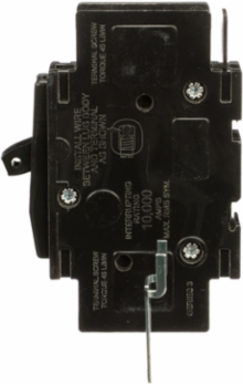

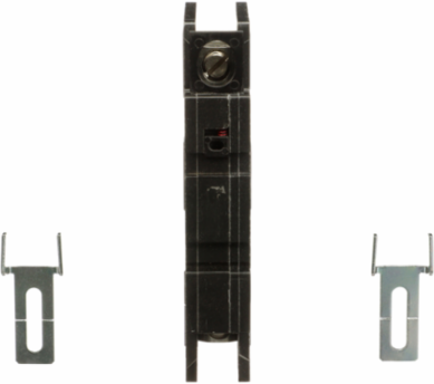

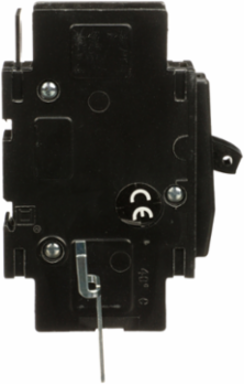

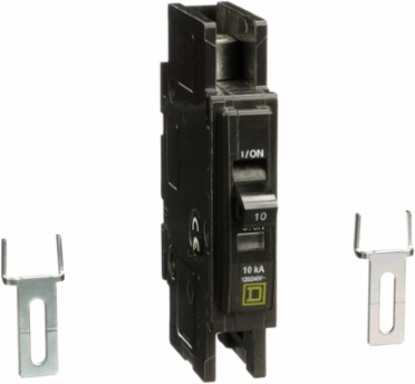

Square D QOUR110 Mini Circuit Breaker 10A 1 Pole 120/240 VAC 10kA
- MPN: QOUR110
- UPC: 785901224730
- PPN: SCH-QOUR110
CAD
$132.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 10A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. Features field-reversible lugs, allowing flexible installation configurations to accommodate various wiring orientations and panel layouts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth2.95 in
Complementary Attributes
- Line Rated Current
- 10 A
Important Information Attributes
- Persona Type Ids
- EU, OM
- Electrical Connection
- slotted box lugs, line side, slotted box lugs, load side
- [Ue] Rated Operational Voltage
- 120/240 V AC, 120 V AC, 48 V DC
- Local Publishable Date
- 2025-11-18
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Market Segmentation
- Commercial
- Awg Gauge
- AWG 14...AWG 2 aluminium/copper
- Circuit Breaker Type
- standard
- Mounting Mode
- unit mount
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- QOU
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2111016EN
- Width Nominal
- 0.75 in
- Short-circuit Current
- 10 kA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer
Certificate AgencyCSA, UL Listed, IEC
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Energy Efficiency OptimizedFalse
Number Of Poles1P
Product Or Component Typeminiature circuit-breaker
ReturnabilityNo
Tightening Torque45-45 lbf.in (AWG 14...AWG 2)
Height Nominal4.05 in
Accessory / Separate Part Typerotatable fixing lug
Halogen-free StatusHalogen free product
Package Weight(Lbs)172.365 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQOU
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
