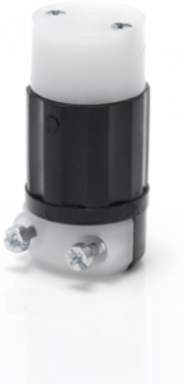

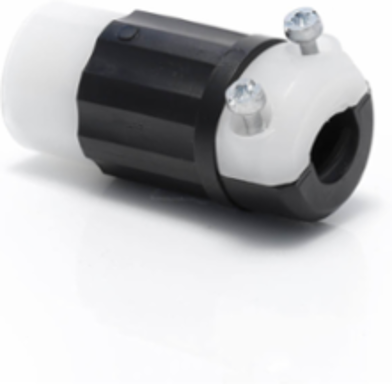

Leviton ML1-C Mini Locking Connector, 15 Amp, 125 Volt, Nylon, Black-White
- MPN: ML1-C
- UPC: 078477987254
- PPN: LEV-ML1-C
CAD
$26.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

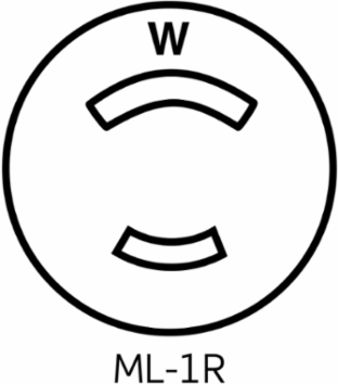

15 Amp, 125 Volt, NEMA ML1R, 2P, 2W, Locking Connector, Industrial Grade, Non-Grounding, MiniLock - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File LR-406
NOM057
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Cord Range
- .218 - .430
- Screw Terminal Torque
- 10-12 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.18-14 AWG
Wire Gauge18-14 AWG
Product Features
- Brand
- Black and White
Device TypeLocking Connector
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingNon-Grounding
Temperature RiseMax 30C at 250 cycles OL at 200 pct rated current
Wire2
