Panduit F1X1LG6 Panduct® F1X1LG6 Base Wiring Duct
Panduit F1X1LG6 Panduct® F1X1LG6 Base Wiring Duct
- MPN: F1X1LG6
- UPC: 074983375035
- PPN: PAN-F1X1LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$3.29/ FT
Description

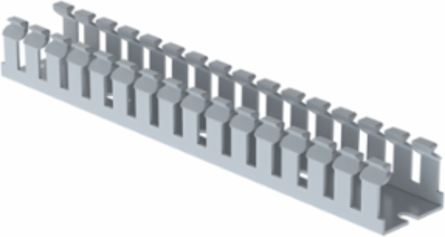

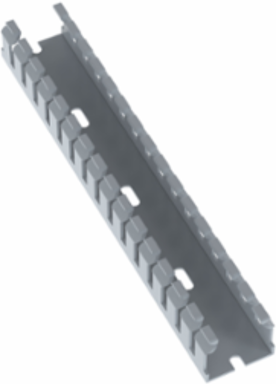

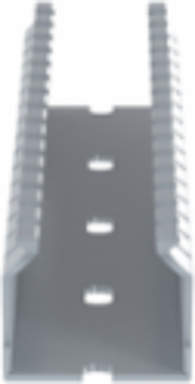

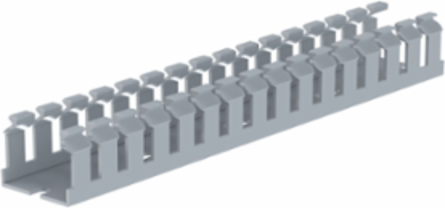

The F1X1LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1" x 1" (25.4 mm x 25.4 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Packaging Details
- UPC
- 07498337503
- Standard Package Volume Ft3
- 0.0449
- Std Package Height In
- 1
- Std Package Length In
- 72
- Std Package Width In
- 1
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 0.8988
- Std Carton Height In
- 2.8
- Std Carton Length In
- 72.9
- Std Carton Width In
- 7.8
- Std Ctn Qty
- 120
- EAN
- 00074983375035
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 6,600
- Pallet Weight
- 706.2000
GTIN Package00074983375035
Standard Package Weight Pounds0.6420
Std Package Height MM25.4
Std Package Length MM1828.8
Std Package Width MM25.4
UOM EA PKPK
GTIN Carton50074983375030
Standard Carton Weight Pounds12.8400
Std Carton Height MM71.12
Std Carton Length MM1851.66
Std Carton Width MM198.12
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty120.0000
Pallet Volume49.434701
RoHS CompliantCompliant
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Mount Method
- Mounting Holes
- Overall Length (m)
- 1.83
- Wiring Duct Style
- Narrow Slot Wiring Duct
- Overall Width (mm)
- 32
- Cover Part Number
- C1LG6
- Slot Width (In.)
- 0.2
- Flammability Rating
- UL94V-0
- Color
- Light Gray
- Application
- Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
- Measurement System
- Imperial
- Nominal Width (In.)
- 1
Any Reason Not to SellN
Slot Width (mm)5
Overall Height (mm)28.7
Overall Length (ft.)6
Product TypeBase Wiring Duct
Includes(1) Base
Overall Height (In.)1.13
Wiring Duct TypeF
Overall Width (In.)1.25
MaterialPVC
Sub BrandPanduct®
Material PropertiesLead-Free
Nominal Height (In.)1
