Panduit F1X2LG6 Panduct® F1X2LG6 Base Wiring Duct
- MPN: F1X2LG6
- UPC: 074983375110
- PPN: PAN-F1X2LG6
- UNSPSC: 39131712
CAD
$4.48
/ FT
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

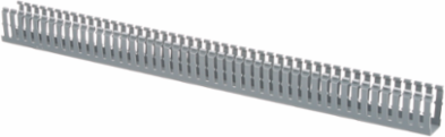

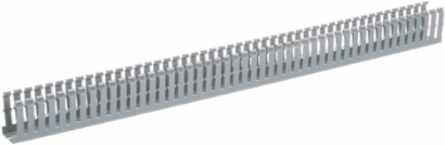

The F1X2LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1" x 2" (25.4 mm x 50.8 mm) and 6' (1.83 m) long. Color Light Gray. Base only. Cover sold separately.
Documentation & Downloads
Specifications
Additional
| Length | 6 ft (1.83 m) |
|---|---|
| Size | 1 in x 2 in (25.4 mm x 50.8 mm) |
| Overall Height | 2.12 in (53.8 mm) |
| Flammability Rating | UL 94 V-0 |
| Mounting Type | Mounting Holes |
| Compliance | RoHS, UL Recognized, CE, BABA |
| Slot Width | 0.2 in (5 mm) |
|---|---|
| Overall Width | 1.25 in (32 mm) |
| Material | Lead-Free PVC |
| Temperature Rating | 506C (1226F) Continuous Use |
| Color | Light Gray |
| Country of Origin | United States |
