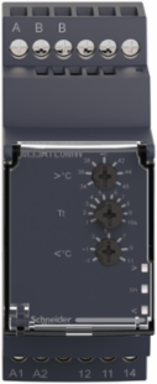

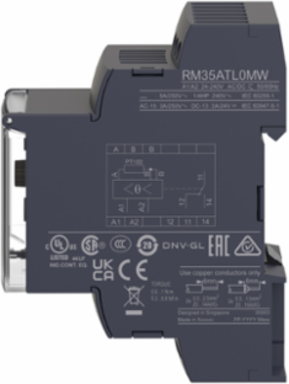

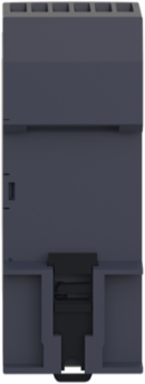

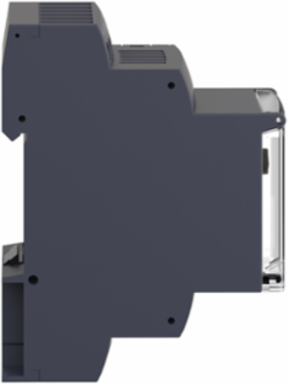

Schneider Electric RM35ATL0MW Harmony Temperature Control Relay, 5A, 24-240V AC/DC, IP30

  • MPN: RM35ATL0MW
  • PPN: SCH-RM35ATL0MW
  • UNSPSC: 39122329
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $161.72

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    "This Harmony RM35AT control relay allows monitoring of temperature control." "This modular control relay is ideal for monitoring of electrical values and temperature variation in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device." "It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC."

    Features

    • Unprecedented accuracy, predictive maintenance and security
    • Simplified panel design due to 35mm width
    • Quick fault identification and troubleshooting
    • Integral LED for indicating control status

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia
    Weight127 g

    Complementary Attributes

    Control Circuit Voltage Limits- 10 % + 10 % Un DC, - 10 % + 10 % Un DC, - 15 % + 10 % Un AC, - 15 % + 10 % Un AC- 10 % + 10 % Un DC, - 10 % + 10 % Un DC, - 15 % + 10 % Un AC, - 15 % + 10 % Un AC
    Maximum Power Consumption In Va3.5 VA AC
    Maximum Switching Voltage250 V AC/DC
    Uc Control Circuit Voltage24...240 V
    Us Rated Supply Voltage50/60 Hz, non self-powered24...240 V AC/DC
    Line Rated Current5 A
    Maximum Power Consumption In W0.6 W DC
    Minimum Switching Current10 mA 5 V DC
    Ui Rated Insulation Voltage250 V IEC 60664-1

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Insulation Resistance> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
    Measurement Accuracy+/- 2 °C, +/- 2 °C
    Relay Monitored Parametersunder temperature: -1...11°C, over temperature: 34...46°C
    Status Led1 LED Green power ON1 LED Yellow correct temperature (high R1), 1 LED Yellow correct temperature (low R2)
    Connections Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The Distribution Phase A40.016607337114601512, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.04120758435136707, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B620 kg CO2 eq., 20.104799999999997
    Local Publishable Date2026-08-10
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1601004EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1918
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRM3
    Contacts Type And Composition1 C/O
    Dielectric Test Voltage2 kV AC 50 Hz, 1 min
    Electromagnetic Compatibilityemission standard for industrial environments IEC 61000-6-4emission standard for residential, commercial and light-industrial environments IEC 61000-6-3immunity for industrial environments NF EN/IEC 61000-6-2
    Immunity To Microbreaks10 ms
    Insulationgalvanic insulation between supply and measurement
    Mechanical Durability30000000 cycles
    Operating Positionany position without derating
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationfor elevator machine rooms and 3-phase supplies
    Relay NameRM35AT
    Reset Time8 s
    ReturnabilityYes
    Software Versionv5.9.4
    Supply Voltage Limits20.4-264 V AC21.6-264 V DC
    Switching Capacity In Va1250 VA
    Tightening Torque0.6-1 N.m IEC 60947-1
    Time Delay Typeadjustable 1...10 s Tt- time delay upon fault
    Vibration Resistance0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-11 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
    Data Sourceextrapolated product
    Nbr. Of Units In Pkg.1
    Non Dissipating Shock Wave4 kV
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    MarkingCE : EMC 89/336/EEC, CE : 73/23/EEC
    Operating Rate<= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Response Time<= 3.5 s + Tt (in case of temperature fault), <= 3.5 s + Tt (in case of temperature fault), <= 3.5 s (on disappearance of fault), <= 3.5 s (on disappearance of fault)<= 3.5 s + Tt (in case of temperature fault), <= 3.5 s + Tt (in case of temperature fault), <= 3.5 s (on disappearance of fault), <= 3.5 s (on disappearance of fault)
    Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1, DC-14 IEC 60947-5-1
    Certificate AgencyGOST, GL, C-tick, UL, CSA
    Carbon Footprint Of The End Of Life Phase C1 To C40.2 kg CO2 eq., 0.2384205206515416
    Carbon Footprint Of The Manufacturing Phase A1 To A39 kg CO2 eq., 8.551813554392087
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contacts Materialcadmium free
    Control Typewithout test button
    Electrical Durability100000 cycles
    Housing Materialpolycarbonate
    Installed DevicePt 100 probe cable length <= 10 m
    Measurement Range+/- 1...46 °C+/- 1...46 °C
    Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product Or Component Typeelevator machine room temperature control relay
    Range Of ProductHarmony Control Relays
    Relay Typetemperature control relays
    Resistance Across Terminals1.33 kOhm temperature
    Shock Resistance15 gn 11 ms IEC 60255-21-1
    Supply Frequency50/60 Hz +/- 10 %
    Sustainable PackagingYes
    Temperature Probe TypePt 100 - 3-wire
    Time Delay Range0.1...10 s adjustable 0...10 % of the full scale value)
    Total Lifecycle Carbon Footprint29 kg CO2 eq.
    Database Version2022-01
    Width Nominal35 mm
    Customs Code8536490075
    Run Up Delay At Power Up0.2 s
    Functional Unit DescriptionRM35 relay used to measure and monitor the abnormal operating&amp; 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard.
    Functional Unit UnitUnit
    Recyclability Potential In %8

    Environment Attributes Main

    Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint28.952848996509594
    Environmental DisclosureENVPEP1601004EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP30 IEC 60529 casing)
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP1601004EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1601004EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2025-02-23
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typeelevator machine room temperature control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8EC001446
    ETIM 10EC001446
    ETIM 9EC001446

    Output Attributes

    Nominal Output Current5 A
    Output Contacts1 C/O

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
