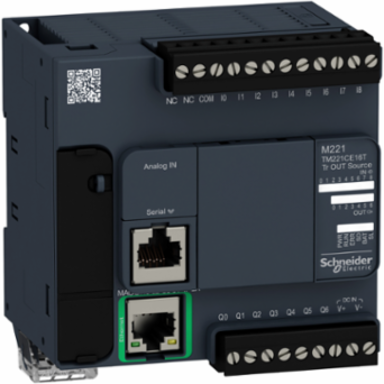

Schneider Electric TM221CE16T Modicon M221 Logic Controller, 16 I/O, PNP Transistor Output, Ethernet

MPN: TM221CE16T
PPN: SCH-TM221CE16T

$441.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This TM221 controller is part of the Modicon M221 Logic controller range. It has 16 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Singapore, Taiwan, United States

Depth	70 mm

Communications & Management Attributes

Communication Port Protocol	USB port USB - SoMachine-Networknon isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet

Communication Service	Modbus TCP client, DHCP client, Modbus TCP slave device, Modbus TCP server, Ethernet/IP adapter

Complementary Attributes

Integrated Connection Type	USB port mini B USB 2.0non isolated serial link serial 1 RJ45 RS232/RS485, Ethernet RJ45
Maximum Size Of Object Areas	512 %M memory bits, 255 %C counters, 512 %KW constant words, 255 %TM timers, 8000 %MW memory words
Maximum Current Per Output Common	3.5 A
Maximum Power Consumption In W	11 W 24 V with max number of I/O expansion module)4.6 W 24 V without I/O expansion module)

Maximum Cable Distance Between Devices	shielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital inputunshielded cable <1 m analog inputshielded cable <3 m fast output
Maximum Tungsten Load	<12 W output and fast output, <12 W output and fast output<12 W output and fast output, <12 W output and fast output
Maximum Leakage Current	0.1 mA transistor output
Maximum Voltage Drop	<1 V<1 V

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Clock Drift	<= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C<= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C
Control Signal Type	single phase, A/B, pulse/direction
Electromagnetic Emission	conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
Insulation	between input and internal logic 500 V AC, between fast input and internal logic 500 V AC, non-insulated between inputs, between output and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputs
Memory Capacity	256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
Resistance To Conducted Disturbances	10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Response Time	5 µs turn-off, I0, I1, I6, I7 fast input, 35 µs turn-off, I2...I5 input5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 100 µs turn-off, other terminals input, 5 µs turn-on, turn-off, Q0...Q1 output50 µs turn-on, turn-off, Q2...Q3 output, 300 µs turn-on, turn-off, other terminals output
Voltage State 0 Guaranteed	<= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
Certificate Agency	EAC, DNV-GL, RCM, ABS, cULus, LR, CE, UKCA, cULus HazLoc
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.6535249198975186, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	11 kg CO2 eq., 11.102144169944033
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403012EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Data Backed Up	256 kB built-in flash memory backup of application and data
Environmental Characteristic	ordinary and hazardous location
Execution Time For 1 Kinstruction	0.3 ms event and periodic task
Immunity To Microbreaks	10 ms
Lsb Value	10 mV
Mechanical Durability	20000000 cycles transistor output
Positioning Functions	PTO 2 pulse/direction 100 kHz)PTO 1 CW/CCW 100 kHz)
Product Or Component Type	logic controller
Range Of Product	Modicon M221
Regulation Loop	adjustable PID regulator up to 14 simultaneous loops
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2...2.7 GHz IEC 61000-4-3
Resistance To Magnetic Fields	30 A/m 50/60 Hz IEC 61000-4-8
Shock Resistance	147 m/s² 11 ms
Supply	serial)serial link supply 5 V, <200 mA
Sustainable Packaging	Yes
Transmission Rate	1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232480 Mbit/s USB
Pep Code	ENVPEP1403012EN
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal	95 mm
Discrete I/O Number	16
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Configurable Filtering Time	0 ms input, 3 ms input, 12 ms input
Electrical Connection	removable screw terminal block for inputs, removable screw terminal block for outputs, terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputsmini B USB 2.0 connector for a programming terminal
Function Available	PWM, frequency generator, PLS
Local Signalling	1 LED (green) for PWR, 1 LED (green) for RUN1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT1 LED per channel (green) for I/O state, 1 LED (green) for SLEthernet network activity (green) for ACT, Ethernet network link (yellow) for Link (Link Status)
Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Resistance To Fast Transients	2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output)1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
Vibration Resistance	1 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting1 gn 8.4-150 Hz symmetrical rail
Voltage State 1 Guaranteed	>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
Carbon Footprint Of The Distribution Phase [A4]	0.6869216485302384, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.005100009556700557
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	94 kg CO2 eq., 94.4714868646892
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	PLC System - PLC CPU
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Conversion Time	1 ms per channel + 1 controller cycle time analog input
Data Storage Equipment	2 GB SD card optional)
Exct Time For Event Task	60 µs response time
Execution Time Per Instruction	0.2 µs Boolean
Inrush Current	35 A
Marking	CE
Port Ethernet	10BASE-T/100BASE-TX 1 100 m copper cable
Product Availability	Stock - Normally stocked in distribution facility
Protection Type	overload and short-circuit protection 1 A
Realtime Clock	with
Reset Time	1 s automatic reset
Resistance To Electrostatic Discharge	8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2
Returnability	Yes
Software Version	v6.2.2
Supply Voltage Limits	20.4-28.8 V
Total Lifecycle Carbon Footprint	107 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Taiwan, TW
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	90 mm
[Us] Rated Supply Voltage	24 V DC
Maximum Number Of I/O Expansion Module	4 (local I/O-Architecture)11 (remote I/O-Architecture)
Package Weight(Lbs)	300.0 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
Relative Humidity	10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1403012EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	No
Storage Altitude	0-3000 m
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	106.91917761261769
Environmental Disclosure	ENVPEP1403012EN
Ip Degree Of Protection	IP20 with protective cover in place
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403012EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	logic controller

Range Of Product	Modicon M221

ETIM

ETIM 8	EC000236

ETIM 9	EC000236

Output Attributes

Output Frequency	100 kHz fast output (PWM/PLS mode) Q0...Q1, 5 kHz output Q2...Q30.1 kHz output Q4...Q6
Discrete Output Logic	positive logic (source)
Discrete Output Type	transistor
Maximum Current Per Output Common	3.5 A

Discrete Output Current	0.5 A
Discrete Output Number	7 transistor 2 fast output
Discrete Output Voltage	24 V DC
Power Supply Output Current	0.325-0.325 A 5 V expansion bus0.15-0.15 A 24 V expansion bus

Surge Protection And Filtering Attributes

Configurable Filtering Time	0 ms input, 3 ms input, 12 ms input

Surge Withstand	1 kV power lines (AC) differential mode IEC 61000-4-51 kV relay output differential mode IEC 61000-4-50.5 kV power lines (DC) common mode IEC 61000-4-52 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-51 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5

Input Attributes

Permitted Overload On Inputs	+/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input
Analogue Input Resolution	10 bits
Discrete Input Current	7 mA discrete input5 mA fast input
Discrete Input Number	9 , discrete input 4 fast input IEC 61131-2 Type 1
Discrete Input Voltage Type	DC

Analogue Input Number	2 0...10 V
Counting Input Number	4 fast input (HSC mode) 100 kHz 32 bits
Discrete Input Logic	sink or source (positive/negative)
Discrete Input Voltage	24 V
Input Impedance	3.4 kOhm discrete input100 kOhm analog input4.9 kOhm fast input
