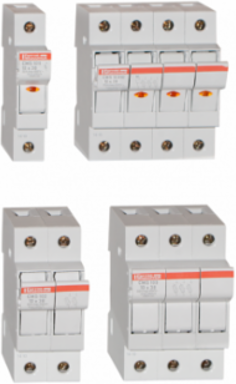

Mersen E305053 US10 modular fuse holder, UL+IEC, 3P, 10x38, MIDGET, DIN rail mounting, IP20
- MPN: E305053
- PPN: FER-US103
CAD
$215.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The innovative and comprehensive Modulostar® range of Mersen fuse-holders.
Features
- Finger safe
- Degree of protection: IP20
- Optional visual blown fuse indicator
- DIN rail mounting
- Modular design
- Lockable
- Multi-pole assembly kit available
- Sealable in closed and open position
- Plastic material UL94V2 mini
- Flame retardant materials with glow wire flammability index to 960°C
Documentation & Downloads
Specifications
Key Specifications
| Sell Pack Height | 2.68 in |
|---|---|
| Product Length | 2.54 in |
| Design Details | US10 triple pole |
| Installation Mounting | DIN rail acc. EN 60715 |
| Rated voltage AC IEC | 690 V |
| Torque Rating | 19.47 lb-in |
| Sell Pack Width | 3.54 in |
| Fuse Size | 10x38 |
| Comments | Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm) |
| Conventional Free Air thermal Current With Fuse-Links Ith | 32 A |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Rated voltage AC UL | 800 V |
| Sell Pack Weight | 1.609 lb |
| Product Weight | 0.402 lb |
|---|---|
| Rated Impulse Withstand Voltage | 6 |
| Product Width | 2.07 in |
| ROHS Compliant | Yes |
| Product Height | 3.41 in |
| Catalogue No. | US103 |
| Sell Pack Length | 8.74 in |
| Rated voltage DC IEC | 690 V |
| Sell Pack Quantity | 4 EACH |
| Rated Insulation Voltage | 690 V |
| Ampere Rating | 32 A |
| Rated voltage DC UL | 1000 V |
| Number of Poles | 3-Pole |
