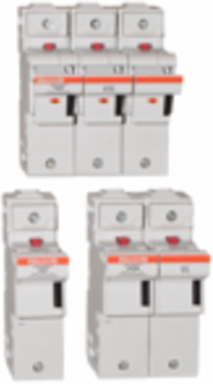

Mersen US22S1P UltraSafe Modular Fuse Holder, 1-4 Poles, 750 VAC, IP20, 125 A, DIN Rail Mounting
- MPN: US22S1P
- UPC: 782001311469
- PPN: FER-G227959
CAD
$50.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The innovative and comprehensive UltraSafe range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe range is made of tough and durable thermoplastic or thermoset material.
Features
- Modular design
- Sealable in closed and open position
- Multi-pole assembly kit available
- Plastic material UL94V2 mini
- Degree of protection: IP20
- Lockable
- Finger safe
- Flame retardant materials with glow wire flammability index to 960°C
- DIN rail mounting
- Optional visual blown fuse indicator & microswitch
Specifications
Product Details
| Connection Terminal Type | Pressure Plate |
|---|---|
| SCCR | 100 kA 200 kA |
| Number of Poles | 1 1 + N 1, 2, 3 2 3 3 + N |
| CE conformity | Yes |
| Body Material | Polyamide |
| ROHS Compliant | Yes |
| Size per Standard | 22x58 |
| Enclosure | IP20 |
| Lead Free | Consult Technical Services |
| Materials Contact | Tin-plated Copper |
|---|---|
| Mounting | DIN-rail Installation On To DIN Rails To EN 60717 |
| AC Voltage | 750 VAC |
| Ampere | 125 A |
| Standards | UL Recognized Component, UL4248, guide IZLT2, file E52283 CSA Certified C22.2, class 6225, file 32169 IEC 60269-2 and IEC 60947-3 RoHS Compliant Plastic material: NF 16101 & 16102 Requirement 2 Compliant |
| DC Voltage Range | 690 - 750 VDC |
| Wiring Range | 1/0 to #14 Solid/Stranded Cu Wire |
| Applications | All circuits up to 750V for protection of motors, transformers, low voltage distribution, control circuits Non-load operation |
