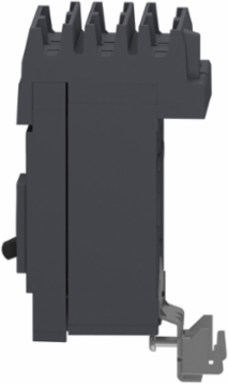

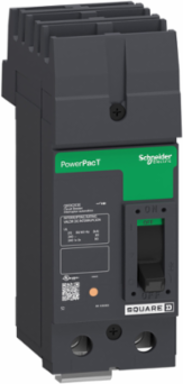

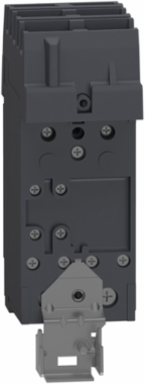

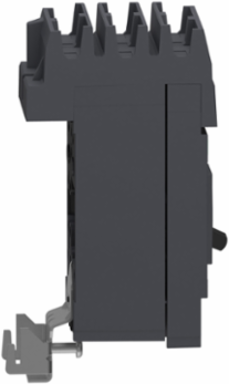

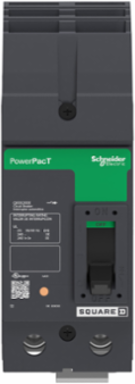

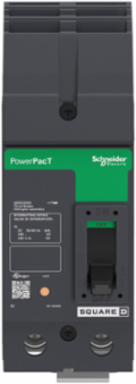

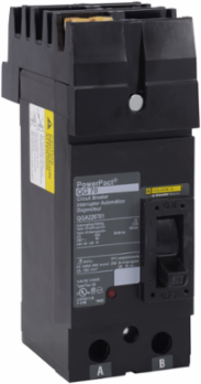

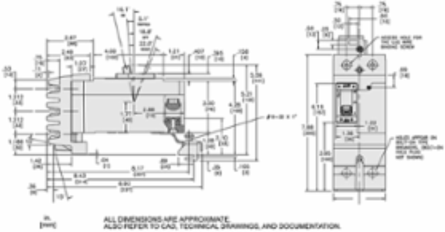

Square D QGA221001 Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AB
- MPN: QGA221001
- UPC: 785901704003
- PPN: SCH-QGA221001
- UNSPSC: 39121601
CAD
$3210.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 100A, 2 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Documentation & Downloads
Specifications
Key Specifications
| Length | 22 mm |
|---|---|
| Height | 3 in |
| Product Name | PowerPact Q |
| Device Application | distribution |
| Width | 3.00 in |
|---|---|
| Product Or Component Type | circuit breaker |
| Range | PowerPact |
Complementary
| Mounting Mode | I-Line bracket) |
|---|---|
| Trip Unit Technology | thermal-magnetic |
| [Ue] Rated Operational Voltage | 240 V AC 50/60 Hz UL |
| Mounting Support | bracket |
| Magnetic Tripping Current | 2400-2400 A |
| Electrical Connection | I-Line connection, line || lugs, load |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV UL |
| Control Type | operating handle |
| Wire Stripping Length | 22 mm |
| Line Rated Current | 100-100 A |
| Breaking Capacity | 65 kA 120/208 V AC 50/60 Hz UL || 65 kA 240 V AC 50/60 Hz UL |
| Poles Description | 2P |
| Depth | 3.93 in |
| Network Frequency | 50/60 Hz |
|---|---|
| Height | 6.47 in |
| Tightening Torque | 28-28 N.m 25-150 mm² (AWG 4...300 kcmil) |
| Breaking Capacity Code | G |
| Local Signalling | 1 trip indicator green) |
| Mounting Height | 3 in |
| Magnetic Hold Current | 1200 A |
| Circuit Breaker Application | HACR rated |
| Utilisation Category | category A |
| Continuous Current Rating | 80 % |
| Mechanical Durability | 1000 cycles loaded || 5000 cycles no load |
| Width | 3.00 in |
| Phase Connection | AB |
Environment
| Ambient Air Temperature For Operation | 40-70 °C |
|---|---|
| Product Certifications | UL || CSA || NOM |
| Standards | UL || CSA || NEMA || NOM-003-SCFI-2000 |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1406032EN |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | N/A |
| Halogen Content Performance | Halogen free product |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
