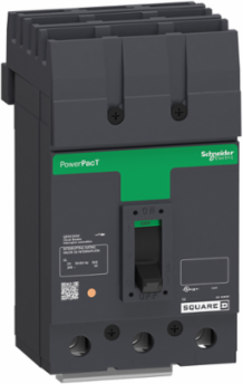

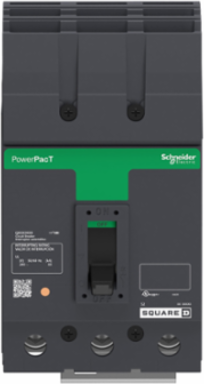

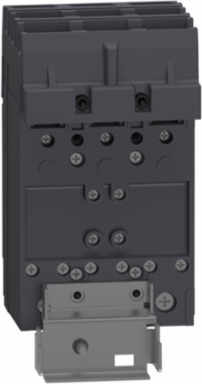

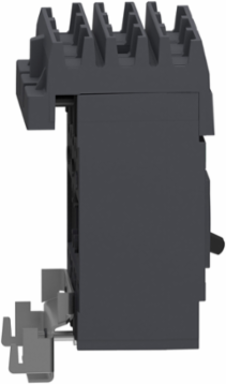

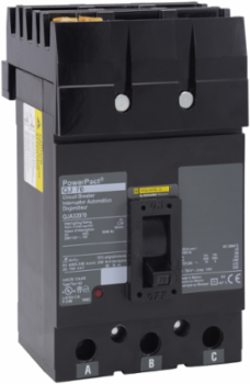

Square D QJA32150 PowerPact Q Circuit Breaker 150A 3 Pole 240V 100kA I-Line Thermal Magnetic

MPN: QJA32150
UPC: 785901705659
PPN: SCH-QJA32150
UNSPSC: 39121601

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 150A, 3 pole, circuit breaker has an interrupting rating of 100kA at 208Y/120VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Features

Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
Confidence and power reliability
UL 489 Listed, CSA, ANCE, IEC certified

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	3.93 in

Weight	3030 g

Physical Attributes

Wire Stripping Length	22 mm

Complementary Attributes

Line Rated Current	150-, 150 A
Uimp Rated Impulse Withstand Voltage	8 kV UL

Ue Rated Operational Voltage	240 V AC 50/60 Hz UL

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL, CSA, NOM
Carbon Footprint Of The End Of Life Phase C1 To C4	5 kg CO2 eq., 5.114025205060089
Carbon Footprint Of The Manufacturing Phase A1 To A3	21 kg CO2 eq., 20.765947819471947
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Continuous Current Rating	80 %
Device Application	distribution
Energy Efficiency Optimized	False
Magnetic Hold Current	1200 A
Mechanical Durability	1000 cycles loaded5000 cycles no load
Mounting Support	bracket
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	62 kg CO2 eq.
Utilisation Category	category A
Data Source	extrapolated product
Width Nominal	4.5 in
Customs Code	8536200020
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	0.8756324058080104, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.5853261381547177, 0.6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	34 kg CO2 eq., 34.16917554541825
Local Publishable Date	2025-11-13
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1909
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	operating handle
Electrical Connection	I-Line connection, linelugs, load
Local Signalling	1 trip indicator green)
Magnetic Tripping Current	2400-2400 A
Mounting Mode	I-Line bracket)
Network Frequency	50/60 Hz
Phase Connection	ABC
Product Name	PowerPact Q
Range	PowerPact
Software Version	v6.2.5-6
Tightening Torque	28-28 N.m 25-150 mm² (4 AWG...300 kcmil)
Trip Unit Technology	thermal-magnetic
Database Version	2024-01
Height Nominal	6.47 in
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free product
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	56

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Halogen free product
Mercury Free	Yes
Ambient Air Temperature For Operation	40-70 °C
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	61.51010711391301
Environmental Disclosure	ENVPEP2311048_V2
Halogen Content Performance	Halogen free product
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2311048_V2
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
