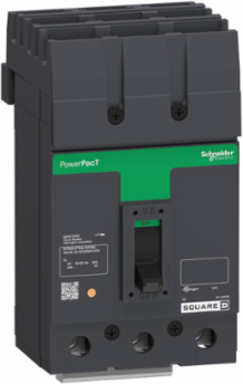

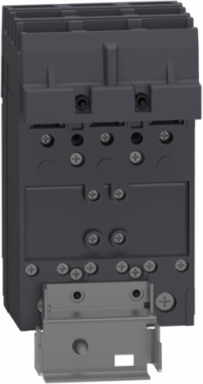

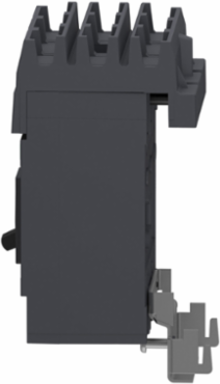

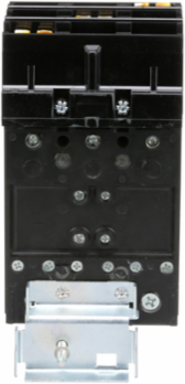

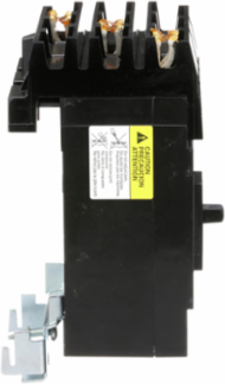

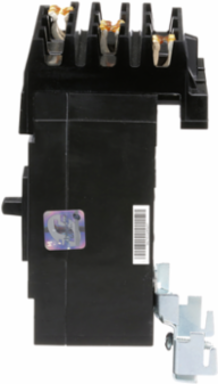

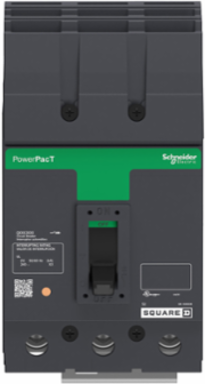

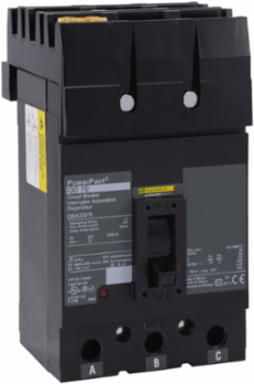

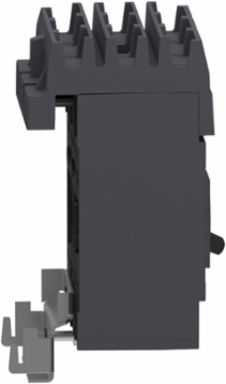

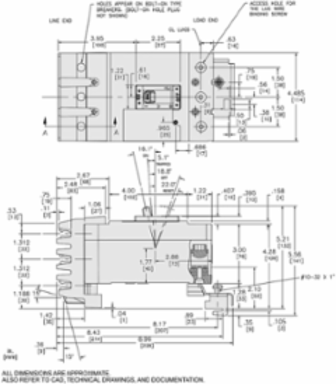

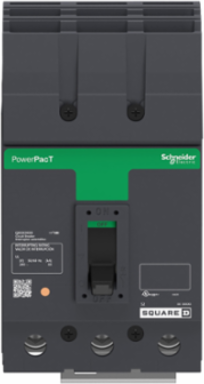

Square D QBA32225 PowerPact Q Circuit Breaker 225A 3 Pole 240V AC 10kA I-Line
- MPN: QBA32225
- UPC: 785901702962
- PPN: SCH-QBA32225
CAD
$1417.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus-connected unit-mount constructions, or I-Line® group-mounted construction. PowerPact Q-frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact Q, circuit breaker is a 3-pole and has a rated current of 225A. This breaker has a breaking capacity of 10kA@240VAC and has a continuous currrent rating of 80 %. This I-Lineed breaker has a thermal-magnetic trip unit technology with a magnetic hold current of 1200 A and a magnetic tripping current of 2400A. Dimensions for this product are 6.47 in (H), 4.5 in (W), 3.93 in (D). This product complys to UL listed, CSA & IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
Product NamePowerPact Q
Device Applicationdistribution
Complementary
- Mounting Mode
- I-Line bracket)
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz UL
- Mounting Support
- bracket
- Magnetic Tripping Current
- 2400-2400 A
- Electrical Connection
- I-Line connection, line || lugs, load
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV UL
- Control Type
- operating handle
- Wire Stripping Length
- 22 mm
- [In] Rated Current
- 225-225 A
- Breaking Capacity
- 10 kA 120/208 V AC 50/60 Hz UL || 10 kA 240 V AC 50/60 Hz UL
- Poles Description
- 3P
- Depth
- 3.93 in
Network Frequency50/60 Hz
Height6.47 in
Tightening Torque28-28 N.m 25-150 mm² AWG 4...300 kcmil)
Breaking Capacity CodeB
Local Signalling1 trip indicator green)
Mounting Height4.5 in
Magnetic Hold Current1200 A
Circuit Breaker ApplicationHACR rated
Utilisation Categorycategory A
Continuous Current Rating80 %
Mechanical Durability1000 cycles loaded || 5000 cycles no load
Width4.5 in
Phase ConnectionABC
Environment
- Ambient Air Temperature For Operation
- 40-70 °C
- Product Certifications
- UL || CSA || NOM
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406032EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
