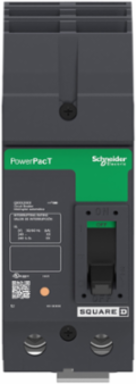

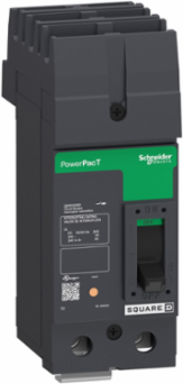

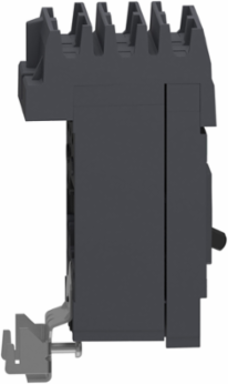

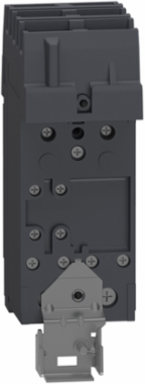

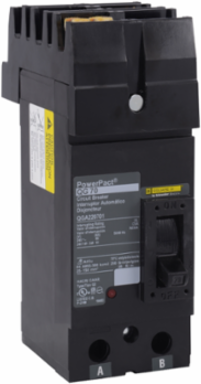

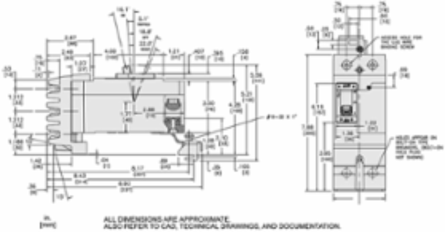

Square D QGA220902 Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC
- MPN: QGA220902
- UPC: 785901106340
- PPN: SCH-QGA220902
CAD
$3210.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 90A, 2 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth3.93 in
Physical Attributes
- Wire Stripping Length
- 22 mm
Complementary Attributes
- Line Rated Current
- 90-, 90 A
Important Information Attributes
- Certificate Agency
- UL, CSA, NOM
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 3.620324773879172
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 15 kg CO2 eq., 14.700646228636082
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Circuit Breaker Application
- HACR rated
- Control Type
- operating handle
- Electrical Connection
- I-Line connection, linelugs, load
- Magnetic Hold Current
- 1000 A
- Mechanical Durability
- 1000 cycles loaded5000 cycles no load
- Mounting Support
- bracket
- Number Of Poles
- 2P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 33 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 56
- Width Nominal
- 3.00 in
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV UL
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Carbon Footprint Of The Distribution Phase [A4]0.6198783862898292, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.41436454334715167, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]13 kg CO2 eq., 13.176248367626453
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Continuous Current Rating80 %
Device Applicationdistribution
Local Signalling1 trip indicator green)
Magnetic Tripping Current1800-1800 A
Mounting ModeI-Line bracket)
Network Frequency50/60 Hz
Phase ConnectionAC
Product NamePowerPact Q
RangePowerPact
Software Versionv6.2.5-6
Tightening Torque28-28 N.m 25-150 mm² (4 AWG...300 kcmil)
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2311048_V2
Pep Verification Date2025-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5][A5]
Energy Model - End Of Life [C1-c4][C1 - C4]
Height Nominal6.47 in
[Ue] Rated Operational Voltage240 V AC 50/60 Hz UL
Halogen-free StatusHalogen free product
Package Weight(Lbs)2.145 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 40-70 °C
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint32.53146229977868
Environmental DisclosureENVPEP2311048_V2
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2311048_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
