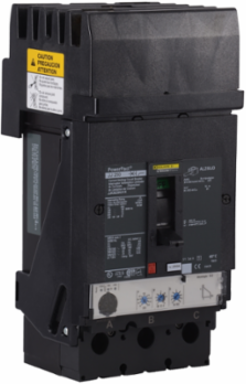

Square D JJA36250U31X PowerPacT J Circuit Breaker 250A 3-Pole 600VAC Micrologic 3.2

MPN: JJA36250U31X
UPC: 785901159117
PPN: SCH-JJA36250U31X

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Mexico, United States

Depth	86 mm

Communications & Management Attributes

Communication Interface	Modbus, Ethernet

Physical Attributes

Wire Stripping Length	25 mm

Complementary Attributes

Line Rated Current	250-250 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Signalling	ready 1 LED green), alarm 1 LED 90 % Ir orange)alarm 1 LED 105 % Ir red)switched off (OFF) 1 trip indicator green)
Protection Type	overload protection, short-circuit protection
[Ics] Rated Service Breaking Capacity	65 kA 220/240 V AC 50/60 Hz IEC 60947-235 kA 380/440/415 V AC 50/60 Hz IEC 60947-218 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]	5 kg CO2 eq., 5.143145830281951
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	24 kg CO2 eq., 23.830039454453185
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	Yes
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2206032_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2539
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	3/0 AWG...350 kcmil aluminium/copper terminals
Continuous Current Rating	80 %
Device Application	distribution
Energy Efficiency Optimized	False
Mounting Support	bracket
Number Of Poles	3P
Product Name	PowerPact J
Quality Labels	CE
Returnability	Yes
Suitability For Isolation	yes IEC 60947-2
Terminal Identifier	AL250JD
Total Lifecycle Carbon Footprint	563 kg CO2 eq.
Trip Unit Technology	electronic, standard, MicroLogic 3.2, LI
Pep Code	ENVPEP2206032EN
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	49
Width Nominal	104 mm
[Ui] Rated Insulation Voltage	750 V IEC 60947-2
Long Time Pick-up Adjustment Range	0.25...1 x In
Package Weight(Lbs)	3.23 kg
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Number Of Slots	2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
Certificate Agency	UL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]	0.9334299243431926, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.023482473044681533, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	533 kg CO2 eq., 533.4305190704965
Local Publishable Date	2025-11-13
Stocking Flag	Y
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Control Type	toggle
Electrical Connection	I-Line connection, linelugs, load
Mounting Mode	I-Line bracket)
Network Frequency	50/60 Hz
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Range	PowerPact
Software Version	v6.2.4
Sustainable Packaging	No
Tightening Torque	25-25 N.m 95-185 mm² (3/0 AWG...350 kcmil)
Trip Unit Name	MicroLogic 3.2
Utilisation Category	category A
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1108.6875
Energy Model - Installation [A5]	[A5]
Energy Model - End Of Life [C1-c4]	[C1 - C4]
Height Nominal	191 mm
[Ue] Rated Operational Voltage	600 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947-2
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Operating Altitude	< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2206032_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3-2023 12 08

Ambient Air Temperature For Storage	-50-85 °C, -50-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	563.3606167526195
Environmental Disclosure	ENVPEP2206032EN
Ip Degree Of Protection	front cover IP40
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2206032EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
