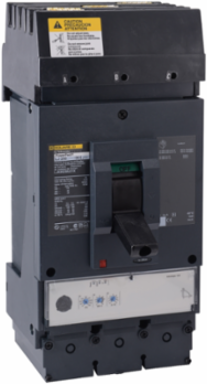

Square D LDA36250U31X PowerPacT L Circuit Breaker 250A 3 Pole 600VAC 14kA I-Line
- MPN: LDA36250U31X
- PPN: SCH-LDA36250U31X
- UNSPSC: 39121616
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered by Schneider Electric, this power circuit breaker is designed to provide robust protection in a variety of power distribution applications. With a rating of 250A and a capacity to handle up to 600VAC, it accommodates substantial electrical loads while safeguarding against overloads. This three-pole breaker is part of the PowerPacT L series, characterized by its advanced features and reliable performance, making it suitable for both industrial and commercial environments. Its dependable 14kA interrupting capacity ensures that it can effectively mitigate fault conditions, enhancing the safety and durability of your electrical system.
Features
- Available in 3 or 4 pole design
- Protection from overloads and short circuits
- Common accessories across the range
- Used as main panel disconnect for control panel
- UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 110 mm |
| Weight | 7711 g |
|---|
Communications & Management Attributes
| Communication Interface | Modbus, Ethernet |
|---|
Physical Attributes
| Color | Black |
|---|
| Wire Stripping Length | 31 mm |
|---|
Complementary Attributes
| Ics Rated Service Breaking Capacity | 25 kA 220/240 V AC 50/60 Hz IEC 60947-218 kA 380/440/415 V AC 50/60 Hz IEC 60947-214 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2 |
|---|---|
| Ue Rated Operational Voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| Uimp Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Line Rated Current | 250-250 A |
|---|---|
| Ui Rated Insulation Voltage | 750 V IEC 60947-2 |
| Long Time Pick Up Adjustment Range | 0.25...1 x In |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Signalling | ready 1 LED green), alarm 1 LED 90 % Ir orange)alarm LED 105 % Ir red)switched off (OFF) 1 trip indicator green) |
| Tightening Torque | 50-50 N.m 35-300 mm² (2 AWG...600 kcmil), 50-50 N.m 35-240 mm² (2 AWG...500 kcmil) |
| Carbon Footprint Of The Distribution Phase A4 | 2.228383327123949, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 2.1496401101385745, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 758 kg CO2 eq., 757.8801652135367 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 2 AWG...600 kcmil copper2 AWG...500 kcmil aluminium |
| Continuous Current Rating | 80 % |
| Device Application | distribution |
| Electrical Connection | I-Line connection, linelugs, load |
| Mounting Mode | I-Line bracket) |
| Network Frequency | 50/60 Hz |
| Phase Connection | ABC |
| Product Name | PowerPact L |
| Protection Technology | current limiter |
| Returnability | Yes |
| Suitability For Isolation | yes IEC 60947-2 |
| Terminal Identifier | AL400L61K3 |
| Trip Unit Name | MicroLogic 3.3 |
| Utilisation Category | category A |
| Data Source | extrapolated product |
| Width Nominal | 140 mm |
| Customs Code | 8536200020 |
| Functional Unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1552.1625 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Number Of Slots | 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in) |
| Certificate Agency | UL, CSA, NOM |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 12 kg CO2 eq., 11.67639778652332 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 50 kg CO2 eq., 49.671357924070975 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | Yes |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2206029_V2 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2543 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Control Type | toggle |
| Device Short Name | L-Frame |
| Energy Efficiency Optimized | False |
| Mounting Support | bracket |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Range | PowerPact |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 824 kg CO2 eq. |
| Trip Unit Technology | electronic, standard, MicroLogic 3.3, LI |
| Database Version | 2024-01 |
| Height Nominal | 340 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 58 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -50-85 °C, -50-85 °C |
| Take Back | No |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2206029_V2 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-01-24 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Operating Altitude | < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 823.6059443613935 |
| Environmental Disclosure | ENVPEP2206029EN |
| Ip Degree Of Protection | front cover IP40 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2206029EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Batteries & Runtime Attributes
| Removable Battery | No |
|---|
