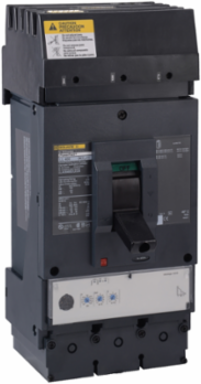

Square D LLA36250U33X PowerPact L Circuit Breaker 250A, 3 Pole, 600VAC, I-Line
- MPN: LLA36250U33X
- PPN: SCH-LLA36250U33X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric PowerPact L Circuit Breaker is engineered to provide reliable protection for electrical circuits with a robust rating of 250A and three poles, suitable for use in systems up to 600VAC. This molded case circuit breaker is designed for optimal performance in power distribution applications, ensuring that your electrical systems can operate efficiently and safely. With its integration into the I-Line system, this breaker stands out for its adaptability in various environments, making it an essential component for those seeking dependable circuit protection and distribution solutions.
Documentation & Downloads
Specifications
Additional
- Amperage
- 250 A
- Rated Service Breaking Capacity
- 125 kA 220/240 V AC, 100 kA 380/440/415 V AC, 50 kA 500/525 V AC, 20 kA 250 V DC, 20 kA 500 V DC
- Rated Insulation Voltage
- 750 V
- Continuous Current Rating
- 80%
- Control Type
- Toggle
- Protection Technology
- Current limiter
- Utilisation Category
- Category A
- Mounting Mode
- I-Line bracket
- Net Weight
- 6.2 kg
- Wire Size Range
- AWG 2...600 kcmil copper, AWG 2...500 kcmil aluminium
- Phase Connection
- ABC
- Number of Alarm Switches
- 1
- Number of Voltage Release Switches
- 1
- Pollution Degree
- 3
- Certifications
- UL, CSA, NOM
- Ambient Storage Temperature
- -50 to 85 °C (-58 to 185 °F)
- Color
- Black
- Warranty
- 18 months
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
Breaking Capacity125 kA 240 V AC, 100 kA 480 V AC, 50 kA 600 V AC, 20 kA 250 V DC, 50 kA 500 V DC
Rated Operational Voltage600 V AC 50/60 Hz
Rated Impulse Withstand Voltage8 kV
Poles3P
Trip Unit TechnologyElectronic, MicroLogic 3.3 S
Suitability for IsolationYes
Electrical ConnectionI-Line connection, line; lugs, load
DimensionsHeight 340 mm, Width 140 mm, Depth 110 mm
Tightening Torque50 N·m
Wire Stripping Length31 mm
Number of Auxiliary Switches2
Number of Overcurrent Trip Switches1
IP Degree of ProtectionFront cover IP40
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
Ambient Operating Temperature-25 to 70 °C (-13 to 158 °F)
Operating Altitude< 2000 m without derating, 5000 m with derating
Communication InterfaceModbus, Ethernet
Country of OriginUS
Mercury FreeYes
