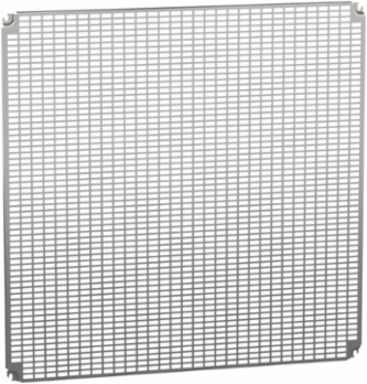

Schneider Electric NSYMR1010 Monobloc Perforated Plate 1000mm x 1000mm, Zinc Coated, 6.48 kg

MPN: NSYMR1010
PPN: SCH-NSYMR1010

$495.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for versatility in various industrial applications, the Schneider Electric Monobloc Perforated Plate is an essential component for automation and control setups. With a generous size of 1000mm x 1000mm, this zinc-coated plate ensures durability while promoting optimal ventilation and cable management within IT enclosures and racks. Weighing in at 6.48 kg, it is both sturdy and manageable, offering reliable support for your installation needs. Whether for data communication or automation configurations, this perforated plate delivers the functionality and resilience required for modern environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, India
Width	37.44 in

Height	37.2 in
Depth	15 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	- H: 1000 mm W: 1000 mm, - H: 1000 mm W: 1000 mm, - H: 1000 mm W: 1000 mm, - H: 1000 mm W: 1000 mm, - H: 1000 mm W: 1000 mm, - H: 1000 mm W: 1000 mm
Mounting Location	step slide, direct fixing on backstuds
Local Publishable Date	2026-04-18
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Material	steel
Number Of Slots	1922
Product Or Component Type	mounting plate
Range	PanelSeT
Surface Finish	zinc coated
Thickness	2 mm
Height Nominal	945 mm
Width Nominal	951 mm
Accessory / Separate Part Category	mounting accessory
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Fixing Mode	screwed on backstuds M8, by fixing element
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Plate Description	Telequick perforated
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No
Sustainable Packaging	No
Pep Code	ENVPEP2202003EN
Height Useful	945 mm
Width Real	951 mm
Cut-out Dimensions	11 x 26 mm
Package Weight(Lbs)	6.270 kg
Take-back	No
Customs Code	7326190080

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2202003EN
