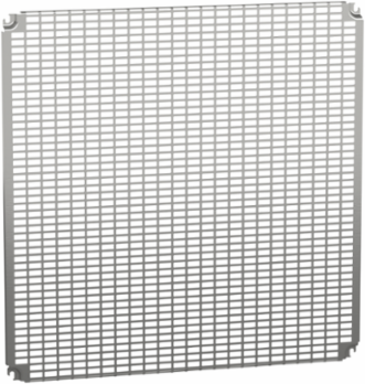

Schneider Electric NSYMR88 Monobloc Perforated Plates 800x800mm, Steel, Mounting Accessory, Grit 11x26mm
- MPN: NSYMR88
- PPN: SCH-NSYMR88
CAD
$340.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric NSYMR88 Monobloc Perforated Plates are designed to enhance the functionality of IT enclosures and racks with their robust perforated steel construction. Measuring 800x800mm, these mounting accessories feature a perforation grit of 11x26mm, allowing for optimal airflow while maintaining structural integrity. This product is essential for ensuring effective thermal management in automation and control applications, making it a reliable choice for modern data and communication environments. With a focus on versatility and resilience, these perforated plates seamlessly integrate into a variety of setups, providing essential support for your equipment.
Documentation & Downloads
Specifications
Additional
- Number of Slots
- 1224

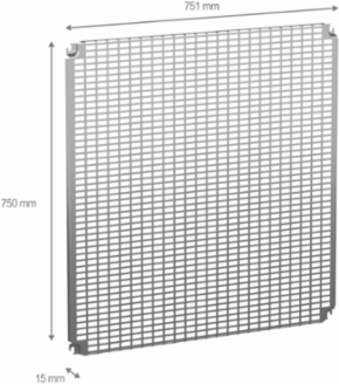

- Width
- 751 mm (29.57 in)
- Thickness
- 2 mm (0.08 in)
- Material
- Steel
- Mounting Location
- Direct fixing on backstuds, step slide
- Cut-Out Dimensions
- 11 x 26 mm
- Mounting Plate Description
- Telequick perforated
- Range Compatibility
- Spacial S3D, Spacial CRN, Spacial S3X, Thalassa PLM
- Reach Free Of Svhc
- Yes
- RoHS Exemption Information
- Yes
- EU RoHS Directive
- Pro-active compliance (product out of legal scope)
- Toxic Heavy Metal Free
- Yes
- Variant Particularity
- Installation in rear of enclosure
- Warranty
- 18 months
Height750 mm (29.53 in)
Depth15 mm (0.59 in)
Weight3.94 kg (8.69 lb)
Surface FinishZinc coated
Fixing ModeScrewed on backstuds M8, by fixing element
Product Or Component TypeMounting plate
RangeSpacial
Device ApplicationMulti-purpose
Reach RegulationFree of Substances of Very High Concern above the threshold
China RoHS RegulationPro-active China RoHS declaration (out of legal scope)
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Accessory / Separate Part CategoryMounting accessory
Country of OriginFrance
