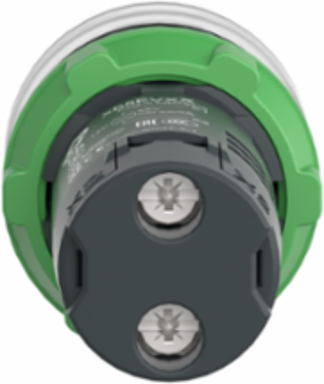

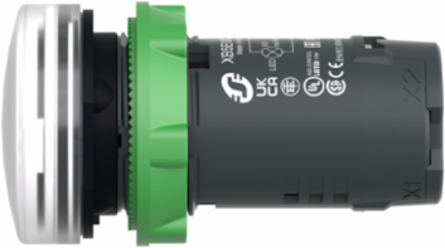

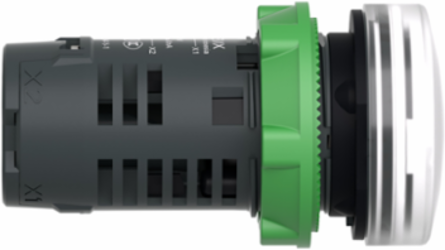

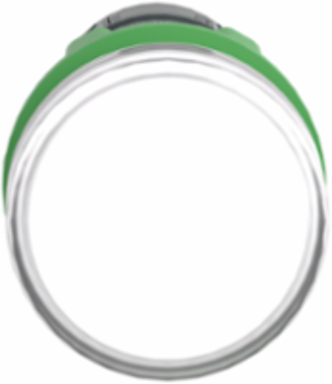

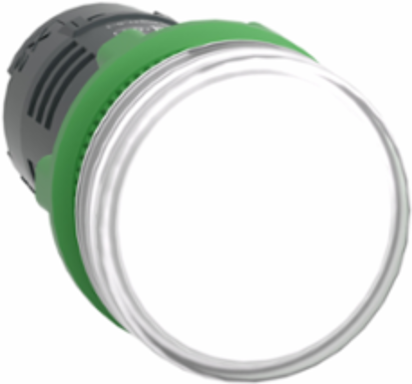

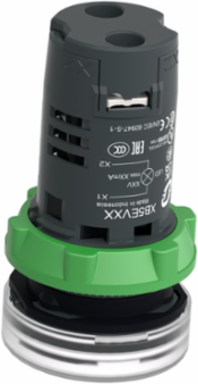

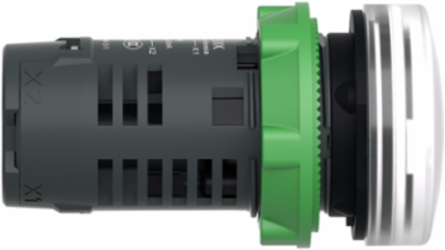

Schneider Electric XB5EVG1 Harmony XB5 Monolithic Pilot Light, 22mm, White LED, IP66/IP67/IP69K
- MPN: XB5EVG1
- PPN: SCH-XB5EVG1
CAD
$86.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, plain lens monolithic white pilot light is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Indonesia, India |
|---|

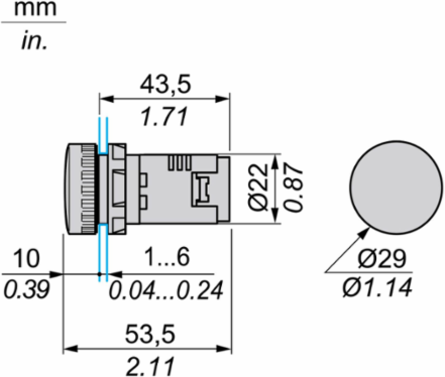

| Depth | 54 mm |
|---|
Physical Attributes
| Cap Operator Or Lens Color | white |
|---|
| Light Source Color | white |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 0, no |
| Cap Operator Or Lens Color | white |
| [Us] Rated Supply Voltage | 110...120 V, 110...120 V AC 50/60 Hz |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0031384, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.009326, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 65 kg CO2 eq., 65.184396192 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308027EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Bulb Base | integral LED |
| Current Consumption | 14 mA |
| Electromagnetic Emission | class B IEC 55011 |
| Head Type | standard |
| Light Source | universal LED |
| Operator Additional Information | with plain lens |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB5 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | round |
| Signalling Type | steady |
| Supply Voltage Limits | 100-132 V AC |
| Total Lifecycle Carbon Footprint | 65 kg CO2 eq. |
| Light Source Color | white |
| Pep Code | ENVPEP2308027EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 29 mm |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Cap/Operator Or Lens Colour | white |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 50.482 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 0.9044 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 0.9044 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electromagnetic Compatibility | electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011 |
| Certificate Agency | CSA, UL Listed |
| Terminals Description Iso N°1 | (X1-X2)PL, (X1-X2)PL, (X1-X2)PL, (X1-X2)PL |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0416353333 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.18312 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Bezel Material | dark grey plastic |
| Compatibility Code | XB5 |
| Device Short Name | XB5 |
| Fixing Collar Material | plastic |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Mounting Diameter | 22.5 mm |
| Overvoltage Category | class II conforming to IEC 60536 |
| Product Or Component Type | pilot light |
| Protective Treatment | TH |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Returnability | Yes |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shock Resistance | 50 gn 18 ms) half sine wave acceleration IEC 60068-2-2730 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Supply Voltage 20 Supply Voltage | 110...120 V |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards.. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 128.1588 |
| Recyclability Potential In % | 22 |
| Width Nominal | 29 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Package Weight(Lbs) | 25.000 g |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 0.9044 |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -0.5196 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 2.933 |
| Customs Code | 8531809026 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C, -25-70 °C, -25-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653 |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 65.4216159253 |
| Environmental Disclosure | ENVPEP2308027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308027EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2308027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | pilot light |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC000272 |
|---|
| ETIM 9 | EC000272 |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | monolithic product |
|---|
