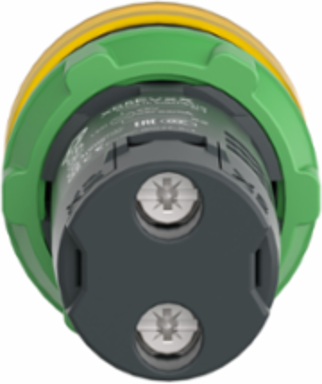

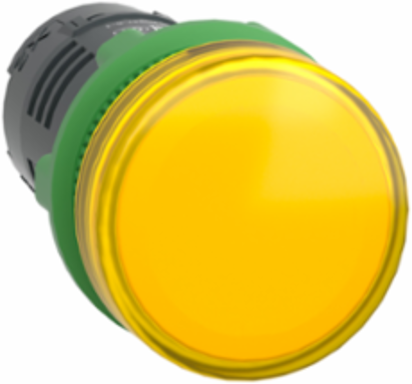

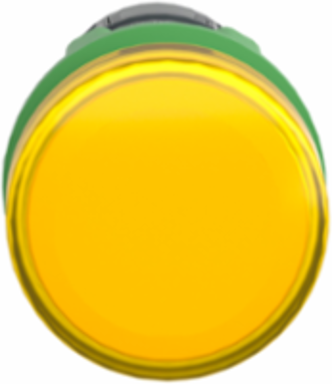

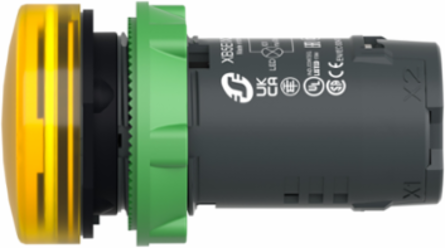

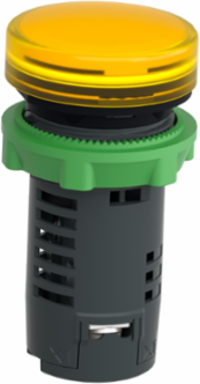

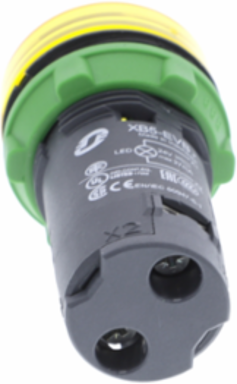

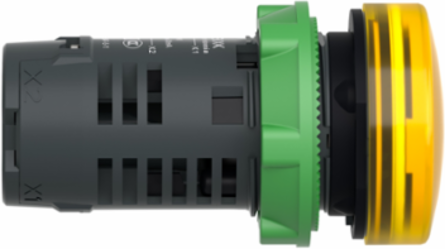

Schneider Electric XB5EVB8 Harmony XB5 Yellow Pilot Light 22mm, IP66/IP67, 24V AC/DC
- MPN: XB5EVB8
- PPN: SCH-XB5EVB8
CAD
$71.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, plain lens monolithic yellow pilot light is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Indonesia, India, United States

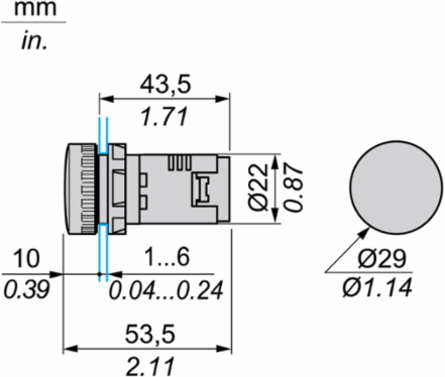

Depth54 mm
Physical Attributes
- Cap Operator Or Lens Color
- yellow
Light Source Coloryellow
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- Supply Voltage Limits
- 19.2-30 V DC, 21.6-26.4 V AC
- [Us] Rated Supply Voltage
- 24 V, 24 V AC/DC 50/60 Hz
- Terminals Description Iso N°1
- (X1-X2)PL, (X1-X2)PL, (X1-X2)PL, (X1-X2)PL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0416353333
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.18312
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 14.96
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- dark grey plastic
- Compatibility Code
- XB5
- Device Short Name
- XB5
- Fixing Collar Material
- plastic
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mounting Diameter
- 22.5 mm
- Overvoltage Category
- class II conforming to IEC 60536
- Product Or Component Type
- pilot light
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.4 kg CO2 eq.
- Cap Operator Or Lens Color
- yellow
- Supply Voltage 20 Supply Voltage
- 24 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 29 mm
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- yellow
- Package Weight(Lbs)
- 23.000 g
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 0.9044
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -0.5196
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 2.933
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
Shock Resistance50 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyCSA, UL Listed
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]0.0031384, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.009326, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.2 kg CO2 eq., 0.1924788732
Local Publishable Date2026-03-26
Future Imap11.56
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308027EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Bulb Baseintegral LED
Current Consumption18 mA
Electromagnetic Emissionclass B IEC 55011
Head Typestandard
Light Sourceuniversal LED
Operator Additional Informationwith plain lens
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Signalling Typesteady
Sustainable PackagingYes
Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Light Source Coloryellow
Pep CodeENVPEP2308027EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Recyclability Potential, In %22
Width Nominal29 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]50.482
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]0.9044
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]0.9044
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C, -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.4296986066
- Environmental Disclosure
- ENVPEP2308027EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2308027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pilot light
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000272
ETIM 9EC000272
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- monolithic product
