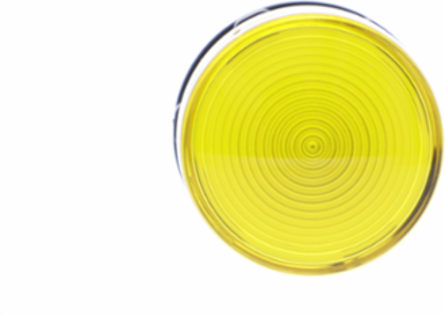

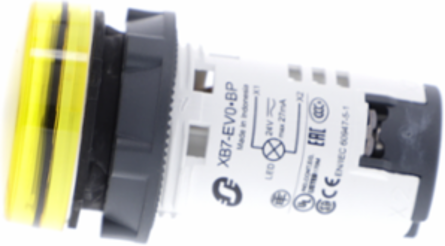

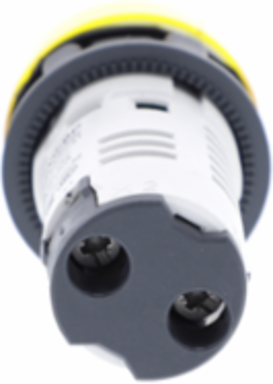

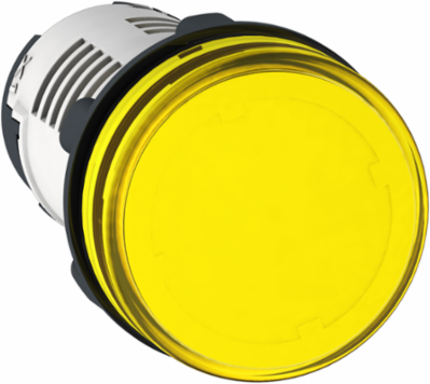

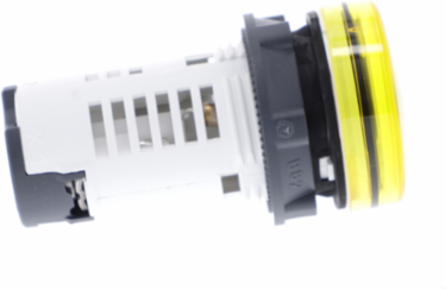

Schneider Electric XB7EV05BP Harmony XB7 Yellow Monolithic Pilot Light, 22mm, 24V AC/DC, LED
- MPN: XB7EV05BP
- PPN: SCH-XB7EV05BP
CAD
$65.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB7, plain lens monolithic yellow pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Features
- Designed with a unified, single-piece monolithic body, this 22mm pilot light drops directly into industry-standard panel cutouts, completely eliminating the need to order separate contact blocks, light modules, or fixing collars. This compact, all-in-one footprint significantly speeds up field installation and reduces inventory overhead for commercial panel builders and industrial automation technicians.
- Powered by a built-in, high-efficiency LED module, this pilot light emits a crisp, clear illumination while drawing minimal current at 24V AC/DC. Unlike traditional incandescent bulbs that burn out from heat or vibration, this solid-state LED guarantees an exceptionally long service life and high-visibility status monitoring, even in brightly lit manufacturing environments.
- Featuring a high-visibility, round yellow plastic lens, this device provides a distinct visual signature optimized for warning and caution alerts within your machine control architecture. The lens is UV-stabilized and color-fast, ensuring that prolonged exposure to industrial ambient lighting won't fade or discolor the lens, keeping your safety signaling accurate over years of operation.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 V AC/DC 50/60 Hz
- Rated Insulation Voltage
- 250 V IEC 60947-1
- Shock Resistance
- 50 gn 11 ms half sine wave IEC 60068-2-27
- Operating Temperature Range
- -25 to 70 °C
- Mounting Diameter
- 22 mm
- Fixing Nut Tightening Torque
- 2-2.4 N.m
- Terminals Type
- screw clamp terminals, ≤ 2 x 1.5 mm² with cable end IEC 60947-1
- Light Source
- LED
- Overvoltage Category
- Class II IEC 60536
- Standards
- IEC 60947-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1
- Environmental Compliance
- REACH SVHC Free, Toxic Heavy Metal Free, Mercury Free, WEEE Compliant
- Brand
- Harmony XB7
- Service Life
- 70000 h at rated voltage and 25 °C
- Color
- Yellow
Current Consumption20-27 mA
Rated Impulse Withstand Voltage6 kV IEC 60947-1
Vibration Resistance5 gn 2-500 Hz IEC 60068-2-6
Storage Temperature Range-40 to 70 °C
Fixing Hole Diameter22.5 mm
Dimensions (Height x Width x Depth)29 x 29 x 54 mm (1.14 x 1.14 x 2.13 in)
MaterialPlastic
Shape of Signaling UnitRound
IP Degree of ProtectionIP65 front face, IP20 rear face IEC 60529
RoHS CompliancePro-active compliance, exempted from EU RoHS scope
NEMA Degree of ProtectionNEMA 4 UL 50 E, NEMA 12 UL 50 E
Net Weight0.02 kg (0.04 lb)
Warranty18 months
