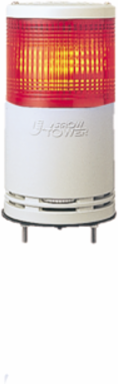

Schneider Electric XVC1B1K Harmony XVC Monolithic Tower Light, 100mm, LED Red, IP54, 24V DC
- MPN: XVC1B1K
- PPN: SCH-XVC1B1K
CAD
$410.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony XVC Monolithic Tower Light from Schneider Electric exemplifies reliability and visibility in safety and signaling applications. Designed for optimal performance, this 100mm LED light provides a bright red signal, ensuring that your alerts are both clear and effective. With an IP54 rating, it offers protection against dust and water splashes, making it suitable for a variety of environments. Operating on a 24V DC power supply, this stack light is a practical choice for enhancing safety and communication in industrial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Japan
Physical Attributes
- Cable Length
- 500 mm
Important Information Attributes
- Awg Gauge
- 18 AWG, 22 AWG
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2150
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Beacon Or Indicator Bank Unit Type
- 1 illuminated unit
- Current Consumption
- 100 mA
- Flashing Frequency
- 0.7-3 Hz
- Marking
- CE
- Mounting Diameter
- 100 mm
- Product Mounting
- on base
- Protective Treatment
- TC
- Returnability
- Yes
- Supply Circuit Type
- DC
- Pep Code
- ENVPEP1904008EN
- Certificate Agency
- UL
- [Us] Rated Supply Voltage
- 24 V
- Package Weight(Lbs)
- 1.488 kg
- Warranty (In Months)
- 18
Cable Cross Section0.83-0.83 mm², 0.33-0.33 mm²
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1904008EN
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Component NameXVC
Electrical Shock Protection Classclass II conforming to IEC 61140
Light SourceLED steady or flashing red
Materialpolycarbonate: illuminated unitABS (acrylonitrile butadiene-styrene): base unitPBT + ABS (UL94-V0): top cover
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecomplete pre-wired monolithic tower light
Range Of ProductHarmony XVC1
Sound Signallingwithout
Sustainable PackagingYes
Height Nominal216 mm
[Uimp] Rated Impulse Withstand Voltage0.8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531809051
Environment Attributes Main
- Ambient Air Temperature For Operation
- -30-50 °C, -30-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1904008EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP1904008EN
Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1904008EN
Ip Degree Of ProtectionIP54 IEC 60529
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- complete pre-wired monolithic tower light
Range Of ProductHarmony XVC1
ETIM
- ETIM 8
- EC001042
ETIM 9EC001042
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
