Schneider Electric LXM32SU90M2 Lexium 32 Motion Servo Drive 3A Single Phase 115-230V 0.3-0.5kW
- MPN: LXM32SU90M2
- PPN: SCH-LXM32SU90M2
CAD
$2092.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

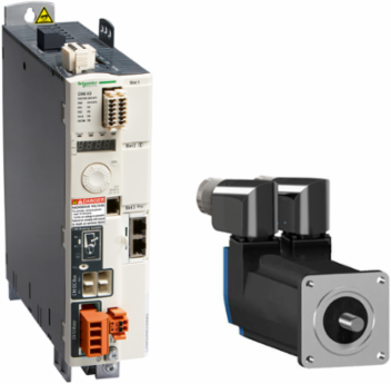

This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 7kW. The motion servo drive features integrated EMC filter. It offers 2 capture discrete inputs and 3 discrete outputs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V, a continuous output current of 3A at 8kHz and a continuous power of 300W at 115V. It is furnished with RJ45 connector (labelled CN7) for Modbus. It offers electrical isolation between power and control. It provides Modbus and SERCOS III communication interface. It is an IP20 rated product. Its dimensions are 68mm (width) x 237mm (depth) x 270mm (height). It weighs 1.8kg. This product is certified by CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BSH (70mm, 1 motor stack). Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, Indonesia, Mexico |
|---|
| Depth | 237 mm |
|---|
Communications & Management Attributes
| Communication Interface | SERCOS III, Integrated |
|---|
Complementary Attributes
| Line Rated Current | 3.0 A |
|---|---|
| Maximum Current Irms | 9.0 A |
| Maximum Operational Altitude | 2000.0 m |
| Maximum Ambient Air Temperature For Operation | 50.0 °C |
|---|---|
| Maximum Leakage Current | 30 mA |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Contact Bounce Time | <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B |
| Nominal Voltage | 115 V single phase, 230 V single phase |
| Supply Voltage | 100-120 V single phase, 200-240 V single phase |
| [Us] Rated Supply Voltage | 230 V100...120 V - 15...10 %, 200...240 V - 15...10 % |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1.1064553314, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 22 kg CO2 eq., 21.8055367435 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Compatibility Code | LXM32S |
| Derating Altitude Scale | 90.0 m |
| Device Short Name | LXM32S |
| Electrical Connection | terminal 3 mm², 12 AWG CN8) |
| Electromagnetic Compatibility | conducted EMC EN 55011 class A group 1 |
| Emc Filter Compatibility | type 020 |
| Field Weakening | false |
| Marking | CE |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Network Number Of Phases | 1 |
| Operating Position | vertical +/- 10 degree |
| Phase | single phase |
| Product Or Component Type | motion servo drive |
| Returnability | No |
| Safety Level | SIL 3 EN/IEC 61508 |
| Shock Resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Software Version | EIME v5.8.1 |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Sustainable Packaging | Yes |
| Tightening Torque | CN8 0.5-0.5 N.m |
| Type Of Cable | single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR |
| Vibration Resistance | 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6 |
| Pep Code | ENVPEP110705EN |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1576.8 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 68 mm |
| Maximum [In] Rated Current | 3.0 A |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1962 |
| Customs Code | 8504404000 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Line Current | 5.2 A 90 % 115 V, with external line choke 2 mH, 6.3 A 107 % 230 V, with external line choke 2 mH, 5.4 A 159 % 115 V, without line choke4.5 A 166 % 230 V, without line choke |
| Response Time | <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B |
| Supply Voltage Limits | 85-132 V, 170-264 V |
| Carbon Footprint Of The Distribution Phase [A4] | 0.3057820785, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0142229881 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 773 kg CO2 eq., 772.5371024735 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI110605EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Braking Current | 50 mA |
| Continuous Power | 400 W 115 V900 W 230 V |
| Derating Altitude Start | 1000.0 m |
| Drive Voltage Drop Coefficient | 0.9 |
| Electrical Isolation | between power and control |
| Emc Filter | integrated |
| Environmental Characteristic | classes 3C1 conforming to IEC 60721-3-3 |
| Format Of The Drive | book |
| Maximum Operational Altitude | 2000.0 m |
| Network Frequency | 47.5...63 Hz |
| Nominal Power | 0.3 kW 115 V 8 kHz0.5 kW 230 V 8 kHz |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 32 |
| Safety Function | STO (safe torque off), Integrated |
| Sampling Duration | 0.25 ms |
| Signalling Function | display of faults 7 segments |
| Status Led | 1 LED (Red) servo drive voltage |
| Supply Voltage Description | single phase 115 V |
| Switching Frequency | 8 kHz |
| Total Lifecycle Carbon Footprint | 796 kg CO2 eq. |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 270 mm |
| Certificate Agency | CSA |
| Number Of Inputs/Outputs | 4 DI + 2 CI + 3 DO |
| Package Weight(Lbs) | 2.37 kg |
| Warranty (In Months) | 18 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1962 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 795.7690996151 |
| Circularity Profile | ENVEOLI110605EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | servo motor BMH 70 mm, 1 |
| Relative Humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-50 °C UL |
| Environmental Disclosure | ENVPEP110705EN |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP110705EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | single phase |
|---|---|
| Range Of Product | Lexium 32 |
| Product Or Component Type | motion servo drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Discrete Output Voltage | <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC |
|---|---|
| Output Voltage | <= power supply voltage, <= power supply voltage |
| Discrete Output Logic | positive or negative DO)EN/IEC 61131-2 |
| Discrete Output Type | logic DO)24 V DC |
| Output Current 3s Peak | 9.0 A, 6 A 115 V 5 s9 A 230 V 5 s |
|---|---|
| Continuous Output Current | 3 A 8 kHz |
| Discrete Output Number | 3 |
| Response Time On Output | 250 µs DO)discrete |
Surge Protection And Filtering Attributes
| Emc Filter | integrated |
|---|
| Emc Filter Compatibility | type 020 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Logic | positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1 |
|---|---|
| Discrete Input Type | capture CAP |
| Discrete Input Number | 2 capture |
|---|---|
| Discrete Input Voltage | 24 V DC capture |
