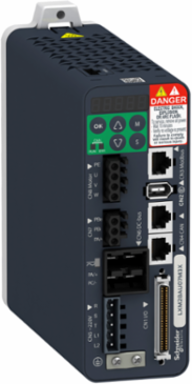

Schneider Electric LXM28AU04M3X Lexium 28 Motion Servo Drive, 400W, 220V, IP20, Compact Housing
- MPN: LXM28AU04M3X
- PPN: SCH-LXM28AU04M3X
CAD
$1145.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lexium 28 Motion Servo Drive, 400W, 220V, IP20, Compact Housing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Singapore, United States
Depth146 mm
Communications & Management Attributes
- Communication Interface
- CANopen, Integrated, CANmotion, Integrated
Complementary Attributes
- Line Rated Current
- 2.6 A
- Maximum Current Irms
- 7.8 A
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Maximum Ambient Air Temperature For Operation55.0 °C
Maximum Leakage Current1.3 mA
Minimum Ambient Air Temperature For Operation0.0 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- spring terminal 0.82...1 mm², AWG 18 L1-L2), spring terminal 0.82...1 mm², AWG 18 R, S, T), spring terminal 0.82...1 mm², AWG 18 U, V, W, PE), spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
- Line Current
- 3.8 A 211.6 % 220 V, single phase, 3.8 A 183.7 % 220 V, three phase
- Network Number Of Phases
- 1, 3
- Phase
- three phase, single phase
- Safety Level
- SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012
- Supply Voltage
- 200-240 V single phase, 200-240 V three phase
- Supply Voltage Limits
- 200-255 V three phase, 170-255 V single phase
- Certificate Agency
- CE, cULus
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1690165541, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0126892973
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 944 kg CO2 eq., 944.2142857143
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Continuous Power
- 400 W 220 V
- Derating Altitude Start
- 1000.0 m
- Device Short Name
- LXM28A
- Electrical Isolation
- between power and control
- Emc Filter
- without EMC filter
- Format Of The Drive
- compact housing
- Method Of Access
- slave
- Minimum Operational Altitude
- 0.0 m
- Nominal Power
- 0.4 kW 220 V 16 kHz
- Operating Position
- vertical
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Lexium 28
- Safety Function
- STO (safe torque off), Integrated
- Signalling Function
- servo status and fault codes five 7-segment display units
- Supply Frequency
- 50/60 Hz - 5...5 %
- Switching Frequency
- 16 kHz
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Pep Code
- ENVPEP1409001EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control AC-servo motors BCH2 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 1927.2
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 55 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 16460
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 16460
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Emc Filter Compatibilitytype 022, type 020
MarkingCE, cULus
Nominal Voltage220 V single phase, 220 V three phase
Protection Typeagainst reverse polarity inputs signal, against short-circuits outputs signal, overcurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
Status Led1 LED (Red) charge, 1 LED (Green) RUN, 1 LED (Red) error
Supply Voltage Descriptionthree phase 220 V AC 50...60 Hz, single phase 220 V AC 50...60 Hz
Transmission Rate250 kbit/s 100-250 m CANopen, CANmotion, 500 kbit/s 4-100 m CANopen, CANmotion, 1 Mbit/s 4-4 m CANopen, CANmotion
[Us] Rated Supply Voltage200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase, 230 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5988824324, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 22.2815067568
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1409001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Connector TypeRJ45 CN4)CANopen, CANmotion
Control Signal Typeservo motor encoder feedback CN2
Derating Temperature Start40.0 °C
Drive Voltage Drop Coefficient1
Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Field Weakeningfalse
Maximum Operational Altitude3000.0 m
Minimum Ambient Air Temperature For Operation0.0 °C
Network Frequency47.5...63 Hz
Number Of Addresses1-127 CANopen, CANmotion
Overvoltage CategoryIII
Product Or Component Typemotion servo drive
ReturnabilityYes
Shock Resistance10 gn, type I IEC 60721-3-3
Software VersionEIME v5.6.0.1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint967 kg CO2 eq.
Type Of Coolingnatural convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal150 mm
Maximum [In] Rated Current2.6 A
Package Weight(Lbs)1.316 kg
Warranty (In Months)18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2398
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2398
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-65 °C, -25-65 °C
- Product Compatibility
- servo motor BCH2 60 mm, 2 400 W, servo motor BCH2 80 mm, 1 400 W, servo motor BCH2 130 mm, 1 300 W
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-55 °C
- Environmental Disclosure
- ENVPEP1409001EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Take BackNo
China Rohs RegulationX
Carbon Footprint967.2763807548
Circularity ProfileENVEOLI1409001EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1409001EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase, single phase
- Range Of Product
- Lexium 28
Product Or Component Typemotion servo drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Number
- 5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1)
- Output Voltage
- <= power supply voltage, <= power supply voltage
- Discrete Output Logic
- positive or negative CN1)
Output Current 3s Peak7.8 A 220 V, 7.8 A
Continuous Output Current2.6 A 16 kHz
Discrete Output Voltage12...24 V DC
Surge Protection And Filtering Attributes
- Emc Filter Compatibility
- type 022, type 020
Emc Filterwithout EMC filter
Input Attributes
- Analogue Input Type
- V_REF voltage analog input - 10...10 V 10 kOhm 14 bits, T_REF voltage analog input
- Analogue Input Number
- 2
- Discrete Input Voltage
- 24 V DC logic
Discrete Input Number8 programmable CN1), 1 pulse train input (PTI) CN1), 2 fast capture CN1), 1 safety function STO CN9)
Discrete Input Logicpositive or negative CN1)
