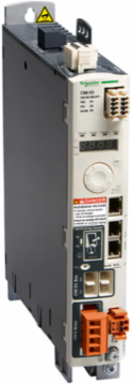

Motion Servo Drive Lexium 32, 72A, Three Phase, 208-480V, 0.4kW
Schneider Electric

Schneider Electric LXM32AD72N4 Motion Servo Drive Lexium 32, 72A, Three Phase, 208-480V, 0.4kW

  • MPN: LXM32AD72N4
  • PPN: SCH-LXM32AD72N4
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 24A at 8kHz and a continuous power of 13000W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 108mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 4.8kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France, Indonesia, United States
    Depth237 mm

    Communications & Management Attributes

    Communication Interface
    CANmotion, Integrated, CANopen, Integrated
    Communication Service1 receive SDO CANmotion, 1 transmit SDO CANmotion, 2 PDOs conforming to DSP 402 CANmotion2 SDOs receive CANopen, 2 SDOs send CANopen, 4 configurable mapping PDOs CANopenCANopen device profile drives and motion control CANopen, CANmotion, emergency CANopen, CANmotion, event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) CANopen, node guarding, heartbeat CANopen, position control mode CANmotion, position control, speed profile, torque profile and homing mode CANopen, sync CANmotion

    Complementary Attributes

    Line Rated Current
    24.0 A
    Maximum Current Irms
    72.0 A
    Maximum Operational Altitude
    2000.0 m
    Maximum Ambient Air Temperature For Operation50.0 °C
    Maximum Leakage Current30 mA
    Minimum Ambient Air Temperature For Operation0.0 °C

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Connector Type
    RJ45 (labelled CN4 or CN5) CANmotion, RJ45 (labelled CN4 or CN5) CANopen
    Continuous Power
    6500 W 208 V13000 W 400 V, 13000 W 480 V
    Electromagnetic Compatibility
    conducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, conducted EMC, environments 1 and 2 EN/IEC 61800-3, electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-31.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3
    Nominal Power
    5 kW 208 V 8 kHz7 kW 400 V 8 kHz, 7 kW 480 V 8 kHz
    Response Time
    <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
    Supply Voltage
    200-240 V three phase, 380-480 V three phase
    Supply Voltage Limits
    170-264 V, 323-528 V
    Certificate Agency
    CSA, TÜV, UL
    Carbon Footprint Of The Distribution Phase [A4]
    0.716200978, 0.7 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0333129987
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    12 146 kg CO2 eq., 12146
    Local Publishable Date
    2025-11-25
    Stocking Flag
    N
    Device Type
    Motion - drive & motor
    Traceability
    Yes
    Average Life Duration
    15 year(s)
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Compatibility Code
    LXM32A
    Derating Altitude Scale
    90.0 m
    Device Short Name
    LXM32A
    Electrical Isolation
    between power and control
    Emc Filter Compatibility
    type 023
    Field Weakening
    false
    Marking
    CE
    Method Of Access
    slave
    Network Frequency
    47.5...63 Hz
    Number Of Addresses
    1-127 CANopen, CANmotion
    Overvoltage Category
    III
    Product Availability
    Stock - Normally stocked in distribution facility
    Protection Type
    against reverse polarity inputs signalagainst short-circuits outputs signal
    Returnability
    Yes
    Safety Level
    SIL 3 EN/IEC 61508PL = e ISO 13849-1
    Shock Resistance
    15 gn 11 ms EN/IEC 60028-2-27
    Software Version
    EIME v5.8.1
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    12 200 kg CO2 eq.
    Type Of Cable
    single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
    Vibration Resistance
    1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
    Pep Code
    ENVPEP110705EN
    Pep Verification Date
    2020-08-01
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
    Functional-unit Unit
    unit
    Energy Consumption On Product Lifetime In Kwh
    24790.8
    Energy Model - Installation [A5]
    Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; < 1kV; EU-27
    Width Nominal
    108 mm
    Number Of Inputs/Outputs
    4 DI + 1 CI + 2 DO
    Package Weight(Lbs)
    5.551 kg
    Warranty (In Months)
    18
    Air Pollution (M3) Operational Energy Use [B6]
    522770
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
    12146
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    44040
    Photochemical Ozone Formation (Kg.Equivalent.C2h4) Operational Energy Use [B6]
    2.7839
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    211740
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    30847
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    30847
    Water Pollution (M3) Operational Energy Use [B6]
    501200
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Contact Bounce Time<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B2 µs CAP0.25 µs...1.5 ms DI
    Electrical Connectionterminal 3 mm², 12 AWG CN8), terminal 5 mm², 10 AWG CN1), terminal 5 mm², 10 AWG CN10)
    Line Current21.1 A 34 % 208 V, with external line choke 1 mH, 22.5 A 45 % 400 V, with external line choke 1 mH, 19.5 A 55 % 480 V, with external line choke 1 mH, 21.9 A 106 % 208 V, without line choke17.3 A 126 % 400 V, without line choke14.6 A 129 % 480 V, without line choke
    Nominal Voltage208 V three phase, 400 V three phase, 480 V three phase
    Status Led1 LED (Red) servo drive voltage, 1 LED error, 1 LED RUN
    Supply Voltage Descriptionthree phase 400 V, three phase 230 V
    Tightening TorqueCN8 0.5-0.5 N.mCN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m
    [Us] Rated Supply Voltage208 V200...240 V - 15...10 %, 380...480 V - 15...10 %
    Carbon Footprint Of The End-of-life Phase [C1 To C4]2.5915331412, 3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]51 kg CO2 eq., 51.0727993516
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Use Carbon Footprint12146
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI110605EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1907
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionAdvanced
    Market SegmentationIndustrial
    Braking Current50 mA
    Control Signal Typeservo motor encoder feedback
    Derating Altitude Start1000.0 m
    Drive Voltage Drop Coefficient0.95
    Emc Filterintegrated
    Environmental Characteristicclasses 3C1 conforming to IEC 60721-3-3
    Format Of The Drivebook
    Maximum Operational Altitude2000.0 m
    Minimum Ambient Air Temperature For Operation0.0 °C
    Network Number Of Phases3
    Operating Positionvertical +/- 10 degree
    Phasethree phase
    Product Or Component Typemotion servo drive
    Range Of ProductLexium 32
    Safety FunctionSTO (safe torque off), Integrated
    Sampling DurationDI 0.25 ms discrete
    Signalling Functiondisplay of faults 7 segments
    Supply Frequency50/60 Hz - 5...5 %
    Switching Frequency8 kHz
    Transmission Rate1 Mbps 4-4 m CANopen, CANmotion125 kbps 500-500 m CANopen, CANmotion250 kbps 250-250 m CANopen, CANmotion50 kbps 1000-1000 m CANopen, CANmotion500 kbps 100-100 m CANopen, CANmotion
    Type Of Coolingintegrated fan
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    Height Nominal270 mm
    Maximum [In] Rated Current24.0 A
    Nbr. Of Units In Pkg.1
    Take-backNo
    Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]50.665
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]137870
    Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]6.3322
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]45286
    Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]30.245
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]242580
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]211740
    Water Eutrophication (Kg.Equivalent.P04 3-) Operational Energy Use [B6]3.0591
    Customs Code8504404000

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-70 °C, -25-70 °C
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    12200.4138464696
    Circularity Profile
    ENVEOLI110605EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
    Pep Verification Date
    2020-08-01
    Type Of Verification For The Pep
    Independent internal review
    Ip Degree Of ProtectionIP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1
    Product Compatibilityservo motor BMH 190 mm, 2servo motor BMH 190 mm, 3servo motor BSH 140 mm, 3, servo motor BMH 140 mm, 2, servo motor BMH 140 mm, 3servo motor BMH 190 mm, 1, servo motor BMH 205 mm, 3, servo motor BSH 140 mm, 2, servo motor BSH 140 mm, 4
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-50 °C UL
    Environmental DisclosureENVPEP110705EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP110705EN
    Pcr VersionPCR-ed3-EN-2015 04 02

    General Attributes

    Phase
    three phase
    Range Of Product
    Lexium 32
    Product Or Component Typemotion servo drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Discrete Output Voltage
    <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Discrete Output Logic
    positive or negative DO)EN/IEC 61131-2
    Discrete Output Type
    logic DO)24 V DC
    Output Current 3s Peak72.0 A, 72 A 208 V 5 s, 72 A 480 V 5 s
    Continuous Output Current24 A 8 kHz
    Discrete Output Number2
    Response Time On Output250 µs DO)discrete

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated
    Emc Filter Compatibilitytype 023

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logic
    positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
    Discrete Input Number
    1 capture2 safety4 logic
    Discrete Input Voltage24 V DC capture, 24 V DC logic, 24 V DC safety
    Discrete Input Typecapture CAPlogic DIsafety compliment of STO_A, compliment of STO_B
