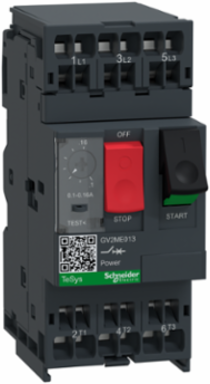

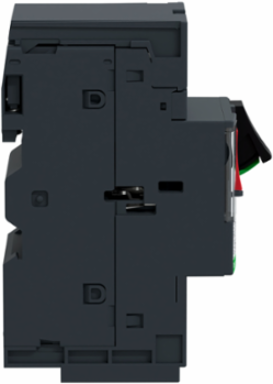

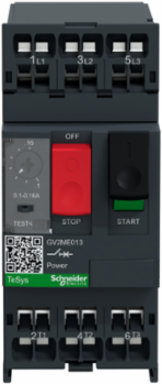

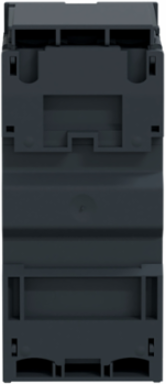

Schneider Electric GV2ME013 TeSys Deca Motor Circuit Breaker 3P, 0.1-0.16A, 100kA Icu
- MPN: GV2ME013
- PPN: SCH-GV2ME013
CAD
$247.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV motor circuit breaker, 3 poles (3P), 0.16A/690V, for 3-phase motor applications less than 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth78.5 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Line Rated Current
- 0.16 A
- Rated Duty
- uninterrupted IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Mechanical Robustness
- shocks 30 Gn for 11 ms, vibrations 5 Gn, 5...150 Hz
- Range Of Product
- TeSys GV2, TeSys Deca
- Certificate Agency
- CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA
- Connections - Terminals
- power circuit: spring terminals 2 cable(s) 1-6 mm² - solid, power circuit: spring terminals 2 cable(s) 1.5-4 mm² - flexible without cable end, power circuit: spring terminals 2 cable(s) 1-4 mm² - flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4527026902683291, 0.5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.634976413467982
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI121004
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GV2ME
- Device Application
- motor protection
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 100000 cycles
- Network Type
- AC
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Returnability
- No
- Suitability For Isolation
- yes IEC 60947-1
- Thermal Protection Adjustment Range
- 0.1-0.16 A IEC 60947-2
- Trip Unit Technology
- thermal-magnetic
- R Thermal Protection Adj Range 3
- 0.1-0.16 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 98.55
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 101 mm
- [Ith] Conventional Free Air Thermal Current
- 0.16 A IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with adaptor plate)
Mounting Positionhorizontal, vertical
Utilisation Categorycategory A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
[Ics] Rated Service Short-circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The Distribution Phase [A4]0.08233418348388603, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.04117841915749615
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]9 kg CO2 eq., 8.86395212531129
Local Publishable Date2026-02-25
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typepush-button
Device Short NameGV2ME
Magnetic Tripping Current1.93-1.93 A
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles3P
Power Dissipation Per Pole2.5 W
Product NameTeSys GV2
RangeTeSys Deca
Software Versionv6.2.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1210004EN
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential, In %49
Width Nominal45 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Package Weight(Lbs)260.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1210004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.075143831688983
Circularity ProfileENVEOLI121004
Environmental DisclosureENVPEP1210004EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
