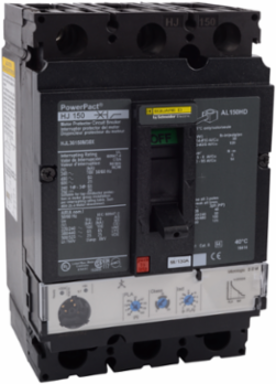

Square D HJL36150M38X PowerPact H Motor Circuit Protector 150A 3-Pole 600VAC 25kA
- MPN: HJL36150M38X
- UPC: 785901942108
- PPN: SCH-HJL36150M38X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 150A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker has a magnetic tripping current of 500-1300A. This product comes with an 18 months warranty.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- Motor Circuit Protector
- Range
- PowerPact
Product NamePowerPact H
Device Applicationdistribution
Complementary
- Mounting Mode
- unit mount lug)
- Terminal Identifier
- AL150HD
- [Ith] Conventional Free Air Thermal Current
- 58-130 A
- Trip Unit Name
- MicroLogic 2.2 M
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-3
- Mounting Support
- lug
- Protected Poles Description
- 3t
- Electrical Connection
- lugs, line || lugs, load
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Wire Stripping Length
- 16 mm
- Utilisation Category
- category A
- Breaking Capacity
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 3P
- Protection Type
- short-circuit protection || overload protection || phase unbalance
- Colour
- black
- Depth
- 86 mm
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit Technologyelectronic, standard, MicroLogic 2.2 M, LSoI
Height163 mm
Tightening Torque5-5 N.m 2.5-6 mm² AWG 14...AWG 10) || 14-14 N.m 10-95 mm² AWG 8...AWG 3/0)
Breaking Capacity CodeJ
Number Of Slots2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Net Weight2.2 kg
Control Typetoggle
[In] Rated Current150-150 A
Continuous Current Rating80 %
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Communication InterfaceModbus || Ethernet
Quantity Per Set1
Awg GaugeAWG 14...AWG 3/0 aluminum/copper terminal
Width104 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206028EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206028EN
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL || CSA || NOM
- Pollution Degree
- 3 IEC 60947-1
- Quality Labels
- CE
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40 IEC 60529
Ambient Air Temperature For Storage-50-85 °C
Operating Altitude< 2000 m without derating || 5000 m with derating
