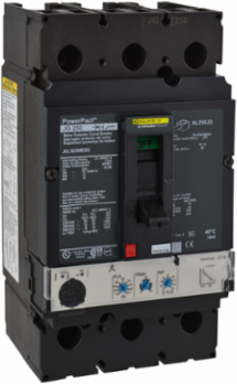

Square D JGL36250M38X PowerPact J Motor Circuit Protector 250A 3-Pole 600VAC 18kA
- MPN: JGL36250M38X
- UPC: 785901949213
- PPN: SCH-JGL36250M38X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Wire Stripping Length
- 25 mm
Complementary Attributes
- Line Rated Current
- 250-250 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Number Of Slots
- 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
- Certificate Agency
- UL, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6554238601889661, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.009651929011281793, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 533 kg CO2 eq., 533.4081683607691
- Local Publishable Date
- 2026-01-15
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2206031_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2539
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Control Type
- toggle
- Energy Efficiency Optimized
- False
- Magnetic Tripping Current
- 2500-2500 A
- Mounting Support
- lug
- Number Of Poles
- 3P
- Product Name
- PowerPact J
- Quality Labels
- CE
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL250JD
- Total Lifecycle Carbon Footprint
- 551 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 1108.6875
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 191 mm
- [Ith] Conventional Free Air Thermal Current
- 114-217 A
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Long Time Pick-up Adjustment Range
- 0.25...1 x In
- Package Weight(Lbs)
- 2.268 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Signallingswitched off (OFF) 1 trip indicator green), ready 1 LED green), alarm LED 95 % Ith red)
Protection Typeoverload protection, short-circuit protection
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 3.8687571226078603
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 12.77614809696986
Local Data StatusPublishable
Return IndicatorY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 3/0...350 kcmil aluminium/copper terminals
Continuous Current Rating80 %
Device Applicationdistribution
Magnetic Hold Current1250 A
Mounting Modeunit mount lug)
Network Frequency50/60 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecircuit breaker
RangePowerPact
Software Versionv6.2.4
Sustainable PackagingNo
Tightening Torque25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2206031EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %51
Width Nominal104 mm
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206031_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint550.7181493695471
Environmental DisclosureENVPEP2206031EN
Ip Degree Of Protectionfront cover IP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206031EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
