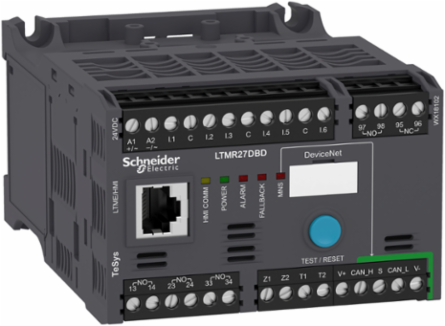

Schneider Electric LTMR27DBD TeSys T Motor Controller 1.35-27A 24VDC DeviceNet with 6 Inputs
- MPN: LTMR27DBD
- PPN: SCH-LTMR27DBD
CAD
$2308.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The TeSys T Motor Controller by Schneider Electric is engineered for exceptional performance in automation and control applications. Capable of handling current ratings from 1.35 to 27A, this model incorporates a DeviceNet interface for seamless integration into various control systems. With six configurable inputs and three outputs, it offers flexibility and scalability to meet diverse operational needs, making it an excellent choice for efficient motor management in industrial settings. This controller combines robust functionality with ease of use, ensuring reliable motor control in critical applications.
Documentation & Downloads
Specifications
Additional
- Measurement Current
- 1.35-27 A
- Supply Voltage Limits
- 20.4-26.24 V DC
- Load Current
- 5 A 250 V AC, 5 A 30 V DC
- Maximum Operating Rate
- 1800 cycles/hour
- Contacts Type and Composition
- 1 NO + 1 NC fault signal, 3 NO
- Measurement Accuracy
- 5-15% earth fault current internal measurement, 1% voltage (100-830 V), 3% power factor, 5% earth fault current external measurement, ±30 min/year internal clock, 0.02 temperature, 1% current, 5% active and reactive power
- Impulse Withstand Voltage
- 6 kV current or voltage, 0.8 kV communication, 0.8 kV supply/inputs/outputs (EN/IEC 60947-4-1)
- Associated Fuse Rating
- 4 A gG output, 0.5 A gG control circuit
- Relay Logic Outputs
- 3
- Connection Pitch
- 5.08 mm (0.20 in)
- Tightening Torque
- 0.5-0.6 N·m (4.43-5.31 lbf·in), flat 3 mm
- Height
- 61 mm (2.40 in)
- Net Weight
- 0.53 kg (1.17 lb)
- Degree of Protection
- IP20
- Mechanical Robustness
- vibrations: 1 Gn symmetrical, 4 Gn plate mounted, shocks: 15 Gn half sine 11 ms (EN/IEC 60068-2-6, -2-27)
- Fire Resistance
- 650 °C (EN/IEC 60695-2-12), 960 °C (UL 94)
- Ambient Storage Temperature
- -40 to 80 °C (-40 to 176 °F)
- Standards
- UL 508, CSA C22.2 No 14, IEC 60947-4-1, EN 60947-4-1, IACS E10
- Sustainability
- Green Premium product, RoHS compliant with exemptions, Mercury free, PVC free, Halogen free plastic parts
- Product Name
- TeSys T
- Device Application
- equipment monitoring and control
Rated Supply Voltage24 V DC
Current Consumption56-127 mA
Permissible Power480 VA AC-15, 30 W DC-13
Maximum Output Switching Frequency2 Hz
Measurement Typesaverage current, phase current RMS, earth-fault current, temperature, imbalance current
Rated Insulation Voltage690 V EN/IEC 60947-1, CSA C22.2 No 14, UL 508
Short-Circuit Withstand100 kA (EN/IEC 60947-4-1)
Logic Inputs6
Overvoltage CategoryIII
Control Circuit Terminal RangeAWG 24 to AWG 14, 0.2 to 2.5 mm² flexible and solid wiring
Width91 mm (3.58 in)
Depth122.5 mm (4.82 in)
MaterialHalogen free plastic parts, Mercury free, PVC free
Pollution Degree3
Electromagnetic CompatibilityConforms to EN/IEC 61000-4-2, -3, -4, -5, -6, -11
Ambient Operating Temperature-20 to 60 °C (-4 to 140 °F)
Operating Altitude≤ 2000 m (6562 ft) without derating
Product CertificationsLROS, RINA, KERI, RMRoS, CSA, ATEX, DNV, CCC, BV, EAC, NOM, ABS, UL, GL, C-Tick
Device Short NameLTMR
Product Or Component Typemotor controller
