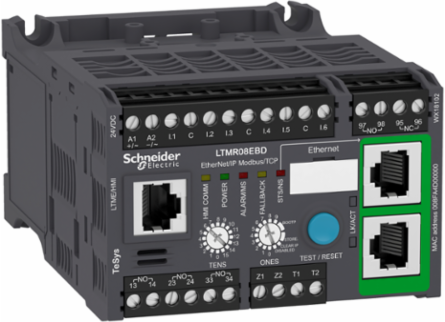

Schneider Electric LTMR08EBD TeSys T Motor Controller, 0.4-8A, 6 Inputs, Ethernet/IP, Modbus/TCP
- MPN: LTMR08EBD
- PPN: SCH-LTMR08EBD
CAD
$2768.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The TeSys T Motor Controller from Schneider Electric is engineered for optimal performance in industrial automation applications. This versatile controller operates within a current range of 0.4 to 8A and features six logic inputs, enabling comprehensive control capabilities for diverse motor management tasks. Integrated with Ethernet/IP and Modbus/TCP protocols, it facilitates seamless communication in modern control systems. Its robust design ensures reliable operation, making it a vital component for enhancing efficiency and reliability in motor control setups.
Documentation & Downloads
Specifications
Additional
- Measurement Current
- 0.4-8 A
- Rated Supply Voltage
- 24 V DC
- Current Consumption
- 56-127 mA
- Permissible Power
- 480 VA AC-15, 30 W DC-13
- Maximum Operating Rate
- 1800 cycles/hour
- Contacts Type And Composition
- 1 NO + 1 NC fault signal, 3 NO
- Measurement Accuracy
- 1% voltage, 3% power factor, 5-15% earth fault current internal and external measurement, 1% current, 5% active and reactive power
- Short-Circuit Withstand
- 100 kA conforming to EN/IEC 60947-4-1
- Impulse Withstand Voltage
- 6 kV current or voltage circuit, 0.8 kV communication and supply circuits EN/IEC 60947-4-1
- Terminal Wire Size Range
- AWG 24 to AWG 14 flexible and solid, 0.2-2.5 mm² control circuit connectors
- Dimensions
- Width 91 mm (3.58 in), Height 61 mm (2.40 in), Depth 122.5 mm (4.82 in)
- Pollution Degree
- 3
- IP Degree of Protection
- IP20
- Ambient Operating Temperature
- -20 to 60 °C (-4 to 140 °F)
- Operating Altitude
- Up to 2000 m (6561.68 ft) without derating
- Standards
- IACS E10, UL 508, CSA C22.2 No 14, EN 60947-4-1, IEC 60947-4-1
- Protective Treatment
- 12x24 hr cycles EN/IEC 60068-2-30, 48 h EN/IEC 60070-2-11, TH EN/IEC 60068
- Communication Protocol
- Modbus TCP, Ethernet/IP
- Country of Origin
- China
Logic Input Number6
Supply Voltage Limits20.4-26.24 V DC
Load Current5 A 250 V AC logic output, 5 A 30 V DC logic output
Maximum Operating Frequency2 Hz
Rated Insulation Voltage690 V EN/IEC 60947-1, CSA C22.2 No 14, UL 508
Protection Typephase failure, locked rotor, earth-leakage, thermal, overload, phase unbalance, reverse polarity, power factor variation, overload (long time), thermal overload
Overvoltage CategoryIII
Associated Fuse Rating4 A gG output, 0.5 A gG control circuit
Connection Pitch5.08 mm (0.20 in)
Tightening Torque0.5-0.6 N.m (4.43-5.31 lbf.in) flat 3 mm
Net Weight0.53 kg (1.17 lb)
Electromagnetic CompatibilityEN/IEC 61000-4-2/3/4/5/6/11, levels up to 8 kV air, 4 kV supply surges, detailed immunity tests
Fire Resistance650 °C EN/IEC 60695-2-12, 960 °C UL 94
Ambient Storage Temperature-40 to 80 °C (-40 to 176 °F)
Mechanical RobustnessVibrations: 1 Gn (sym rail), 4-5 Gn (plate mount), Shocks: 15 Gn half sine 11 ms
Product CertificationsCCC, ABS, C-Tick, NOM, CSA, RMRoS, RINA, UL, BV, KERI, DNV, GL, EAC, LROS, ATEX
Bus TypeEthernet IEEE 802.3, 10-100 Mbit/s, RJ45, 2 shielded twisted pairs
MaterialHalogen-free plastic parts
