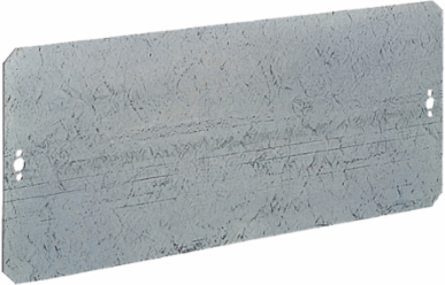

Schneider Electric NSYPMP7502DLP Galvanised Steel Mounting Plate 750 mm x 300 mm, 2 mm Thickness, Set of 2
- MPN: NSYPMP7502DLP
- PPN: SCH-NSYPMP7502DLP
CAD
$24.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, this mounting plate made of galvanised steel is an essential component for your Thalassa PLA and PHD enclosures. With a thickness of 2 mm and dimensions that fit seamlessly within your chassis structure, it provides robust support for various applications. The mounting plate is easy to install using screws, ensuring a secure fit, and is available in a set of two for your convenience. Manufactured in Spain, this product not only meets high standards of quality but also contributes to a sustainable future with its thoughtful design.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 24.06 in
Height11.73 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 9 kg CO2 eq., 8.627960020414388
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 16 kg CO2 eq., 16.28071328727988
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- 1 mounting plate
- Fixing Mode
- by screws
- Mounting Location
- on fixing supports of chassis structure
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 2
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 31 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 98
- Height Useful
- real: 298 mm
- Width Real
- real: 611 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A46.009571763297781, 6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.09850592712967964, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Materialgalvanised steel
Mounting Plate Descriptionplain
Product Or Component Typemounting plate
RangePanelSeT
Software Versionv6.1
Thickness2 mm
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP2202003EN
Pep Verification Date2024-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominalnominal: 300 mm
Width Nominalnominal: 750 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 31.01675099812173
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2202003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
