Schneider Electric NSYSUCR4060 Universal Cross Rails Set of 2, 600 mm Length, 40 mm Width, 1.5 mm Thickness
Schneider Electric NSYSUCR4060 Universal Cross Rails Set of 2, 600 mm Length, 40 mm Width, 1.5 mm Thickness
- MPN: NSYSUCR4060
- PPN: SCH-NSYSUCR4060
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$75.40/ EA
Description

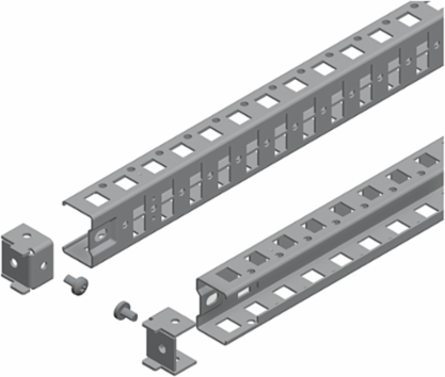

Spacial SF/SM universal perforated cross rails. 39 mm (1 row) x 600 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.
Specifications
Complementary Attributes
- Maximum Load
- 50 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails, 4 supports
- Mounting Location

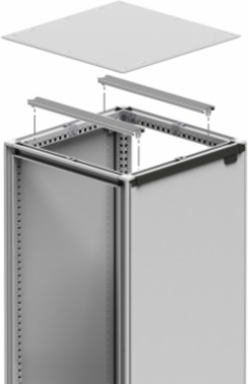

- on structure of enclosure, between cross rails
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3 kg CO2 eq., 2.628247621
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 5 kg CO2 eq., 4.857842444
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Fixing Mode
- by screws
- Mounting Support
- adaptation profile, on SM enclosures
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 8 kg CO2 eq.
- Medium Desc
- Universal cross rails, PanelSeT SFN, Spacial SF, Spacial SM, H40 W600mm, 1 row, set of 2
- Stocking Flag
- N
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Adjustment
- adjustable with a pitch of 25 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 600 mm, - H: 600 mm, - H: 600 mm, - H: 600 mm
Carbon Footprint Of The Distribution Phase A40.215213083, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.247898604, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-09
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Energy Efficiency OptimizedFalse
Materialsteel
Package Weight Lbs1.118 kg
Product Or Component Typeuniversal cross rail
RangePanelSeT
Surface Finishgalvanized
Thickness1.5 mm
Accessory Separate Part Category2mounting accessory
Country Of Origin 6US
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 7.949201753
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- universal cross rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 19.96 in
- Depth
- 27 mm
Country of OriginSpain, India
