Schneider Electric NSYSUCR4050 Universal Cross Rails 40 mm x 500 mm, Steel, Galvanized, Set of 2
Schneider Electric NSYSUCR4050 Universal Cross Rails 40 mm x 500 mm, Steel, Galvanized, Set of 2
- MPN: NSYSUCR4050
- PPN: SCH-NSYSUCR4050
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$75.80/ EA
Description

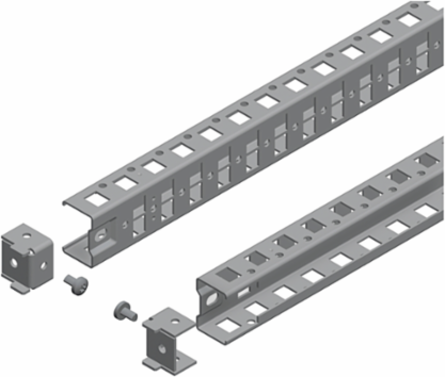

Spacial SF/SM universal perforated cross rails. 39 mm (1 row) x 500 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.
Specifications
Complementary Attributes
- Maximum Load
- 60 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails, 4 supports
- Mounting Location
- on structure of enclosure, between cross rails
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 2 kg CO2 eq., 2.209796748
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 4 kg CO2 eq., 4.084411357
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Fixing Mode
- by screws
- Mounting Support
- adaptation profile, on SM enclosures
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- galvanized
- Thickness
- 1.5 mm
- Accessory Separate Part Category
- mounting accessory
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional Unit Unit
- unit
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Offer Owner Code
- 190789
- Height Nominal
- nominal: 500 mm
- Width Nominal
- 40 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 500 mm, - H: 500 mm, - H: 500 mm, - H: 500 mm
Carbon Footprint Of The Distribution Phase A40.180948388, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.208429954, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable with a pitch of 25 mm
Energy Efficiency OptimizedFalse
Materialsteel
Number Of Horizontal Rows1
Product Or Component Typeuniversal cross rail
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint7 kg CO2 eq.
Silicone FreeNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Quantity1
Reference Lifetime In Y220
Recyclability Potential In 298
Pn1
Height Usefuluseful: 407 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- No
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint6.683586447
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- universal cross rail
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 16.02 in
- Depth
- 27 mm
Country of OriginBrazil, Egypt, Spain, India
