Schneider Electric NSYSUCR4080 Universal Cross Rails, 800mm Length, Zinc-Plated Steel, 1 Row, Set of 2
Schneider Electric NSYSUCR4080 Universal Cross Rails, 800mm Length, Zinc-Plated Steel, 1 Row, Set of 2
- MPN: NSYSUCR4080
- PPN: SCH-NSYSUCR4080
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$94.60/ EA
Description

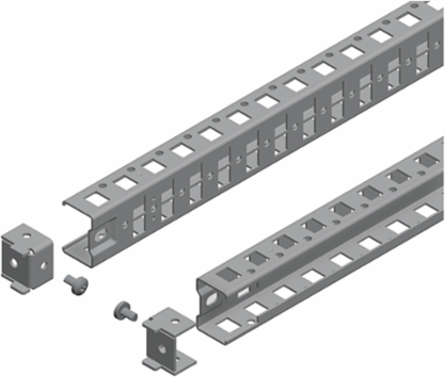

Spacial SF/SM universal perforated cross rails. 39 mm (1 row) x 800 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.
Specifications
Complementary Attributes
- Maximum Load
- 40 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails, 4 supports

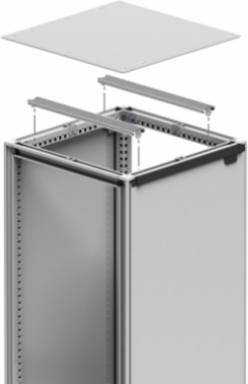

- Mounting Location
- on structure of enclosure, between cross rails
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 6 kg CO2 eq., 5.667893573
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 10 kg CO2 eq., 10.47608062
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Legacy Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- adjustable with a pitch of 25 mm
- Energy Efficiency Optimized
- False
- Material
- steel
- Number Of Horizontal Rows
- 1
- Product Or Component Type
- universal cross rail
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 17 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional Unit Unit
- unit
- Reference Lifetime In Y2
- 20
- Recyclability Potential In 2
- 98
- Height Nominal
- nominal: 800 mm
- Width Nominal
- 40 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 800 mm, - H: 800 mm, - H: 800 mm, - H: 800 mm
Carbon Footprint Of The Distribution Phase A40.464113366, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.534600657, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-08-19
Return IndicatorN
Stock Policy1
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Fixing Modeby screws
Mounting Supportadaptation profile, on SM enclosures
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Surface Finishgalvanized
Thickness1.5 mm
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G22411
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code190789
Height Usefuluseful: 707 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 17.14268822
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- universal cross rail
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 27.83 in
- Depth
- 27 mm
Country of OriginFrance, India
