Schneider Electric NSYSUCR90200 Universal cross rails, PanelSeT SFN, Spacial SF, Spacial SM, H90 W2000mm, 3 rows, set of 2
Schneider Electric NSYSUCR90200 Universal cross rails, PanelSeT SFN, Spacial SF, Spacial SM, H90 W2000mm, 3 rows, set of 2
- MPN: NSYSUCR90200
- PPN: SCH-NSYSUCR90200
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$226.78/ EA
Description

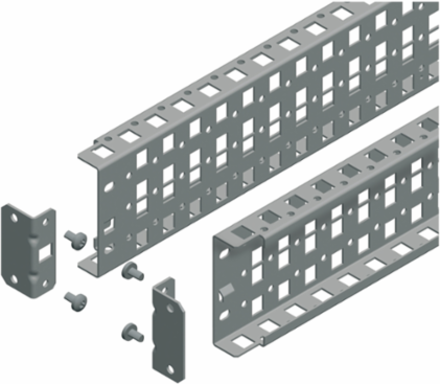

Spacial SF/SM universal perforated cross rails. 89 mm (3 rows) x 2000 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails, 4 supports
- Mounting Location
- on structure of enclosure, between cross rails
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 14 kg CO2 eq., 14.10508562
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 26 kg CO2 eq., 26.07071079
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Fixing Mode
- by screws
- Material
- steel
- Number Of Horizontal Rows
- 3
- Product Or Component Type
- universal cross rail
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 43 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Offer Owner Code
- 190789
- Height Nominal
- nominal: 2000 mm
- Width Nominal
- 90 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 2000 mm, - H: 2000 mm, - H: 2000 mm, - H: 2000 mm
Carbon Footprint Of The Distribution Phase A41.154989711, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A51.330403959, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable with a pitch of 25 mm
Energy Efficiency OptimizedFalse
Installation Directionvertical
Mounting Supportadaptation profile, on SM enclosures
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Surface Finishgalvanized
Thickness1.5 mm
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Pn1
Height Usefuluseful: 1907 mm
Width Real90 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 42.66119009
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- universal cross rail
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 75.08 in
- Country of Origin
- Brazil, Egypt, Spain, India
Width3.54 in
Depth27 mm
