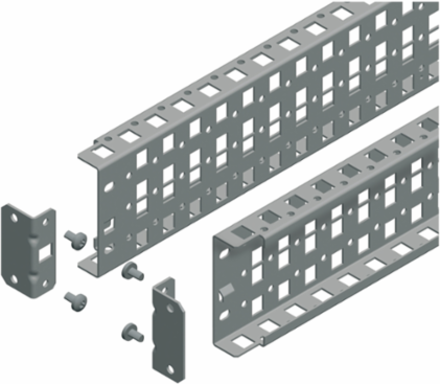

Schneider Electric NSYSUCR90220 Universal Cross Rails 2200mm x 90mm, Steel, 3 Rows, Set of 2
Schneider Electric NSYSUCR90220 Universal Cross Rails 2200mm x 90mm, Steel, 3 Rows, Set of 2
- MPN: NSYSUCR90220
- PPN: SCH-NSYSUCR90220
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$224.46/ EA
Description
Spacial SF/SM universal perforated cross rails. 89 mm (3 rows) x 2200 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.
Features
- Used for the creation of structures inside the enclosure.
- Cross-rails available in three sizes: 40 mm (one row), 65 mm (two rows) and 90 mm (three rows).
- Each row is perforated every 25 mm with a 5.2 mm diameter hole
- A 11x13 mm cutout which enables fixing by means of M6 self-tapping screws, ref
- Equipment are fixed by means of caged nuts or self-tapping screws, Material: Zinc-coated steel
- Thickness: 15/10e mm
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails, 4 supports
- Mounting Location
- between cross rails, on structure of enclosure
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Fixing Mode
- by screws
- Material
- steel
- Package Weight Lbs
- 6.000 kg
- Product Or Component Type
- universal cross rail
- Range
- PanelSeT
- Surface Finish
- galvanized
- Thickness
- 1.5 mm
- Medium Desc
- Universal cross rails, PanelSeT SFN, Spacial SF, Spacial SM, H90 W2200mm, 3 rows, set of 2
- Product Kit Identifier
- N
- Adjustment
- adjustable with a pitch of 25 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 2200 mm, - H: 2200 mm, - H: 2200 mm, - H: 2200 mm
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Installation Directionvertical
Mounting Supportadaptation profile, on SM enclosures
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1109023EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1109023EN
General Attributes
- Product Or Component Type
- universal cross rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 82.95 in
Depth27 mm
