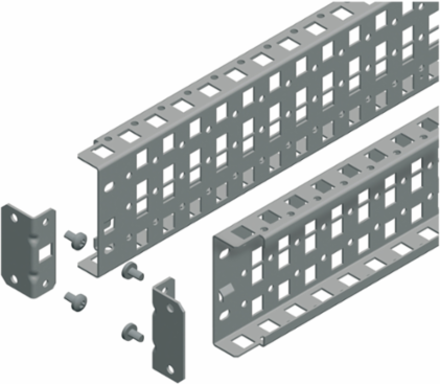

Schneider Electric NSYSUCR90160 Universal Cross Rails, 90 mm x 1600 mm, Set of 2, 3 Rows
- MPN: NSYSUCR90160
- PPN: SCH-NSYSUCR90160
CAD
$195.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF/SM universal perforated cross rails. 89 mm (3 rows) x 1600 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 59.33 in
- Country of Origin
- Brazil, Egypt, Spain, India
Width3.54 in
Depth27 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails, 4 supports
- Mounting Location
- on structure of enclosure, between cross rails
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- adjustable with a pitch of 25 mm
- Fixing Mode
- by screws
- Material
- steel
- Number Of Horizontal Rows
- 3
- Product Or Component Type
- universal cross rail
- Range
- PanelSeT
- Surface Finish
- galvanized
- Thickness
- 1.5 mm
- Warranty In Months
- 18
- Height Nominal
- nominal: 1600 mm
- Width Nominal
- 90 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1600 mm, - H: 1600 mm, - H: 1600 mm, - H: 1600 mm
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Installation Directionvertical
Mounting Supportadaptation profile, on SM enclosures
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP1109023EN
Height Usefuluseful: 1507 mm
Width Real90 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1109023EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- universal cross rail
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
