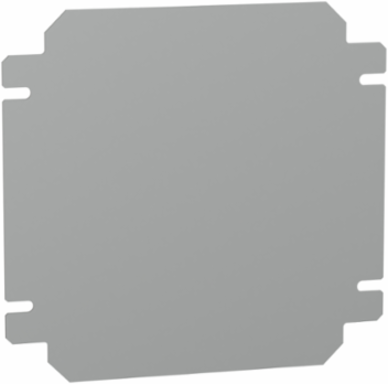

Schneider Electric NSYMM22SB Galvanised Steel 200mm Mounting Plate, Thickness 1.5mm, 2kg Load Capacity

MPN: NSYMM22SB
PPN: SCH-NSYMM22SB

$22.55

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Crafted from durable galvanised sheet steel, this plain mounting plate measures 200mm by 200mm and is designed for versatility in various applications. With a thickness of 1.5mm and a weight of just 0.364 kg, it provides a reliable solution for mounting within enclosures, supporting a permanent permissible load of up to 2 kg. This mounting plate is compatible with the PanelSeT range, making it an ideal choice for panel builders seeking a robust and functional component for their projects. Its metallic surface finish not only enhances durability but also ensures a sleek appearance in any installation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, India

Width	6.46 in

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	-, -
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1 kg CO2 eq., 1.0375214560392592
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 1.9577732529137353
Local Data Status	Publishable
Return Indicator	N
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Material	galvanised steel
Mounting Plate Description	plain
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	PanelSeT
Software Version	v6.1
Surface Finish	metallic
Thickness	1.5 mm
Pep Code	ENVPEP2202003EN
Pep Verification Date	2025-09-09
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27

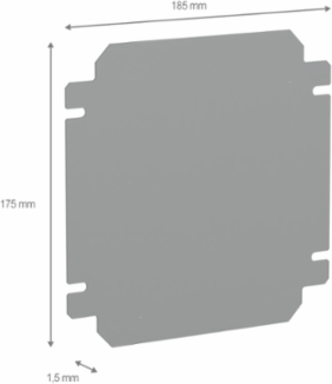

Height Nominal	nominal: 175 mm
Width Real	fixing centers: 164 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	7326190080

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.7226574568352798, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.01184544350023237, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Stocking Flag	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	1 mounting plate
Fixing Mode	by 2 screws Ø5 mm self-tapping screws - bottom of enclosure
Mounting Location	bottom of enclosure
Permanent Permissible Load	2 kg back of the enclosure
Product Or Component Type	mounting plate
Returnability	No
Surface And Useful Surface	nominal 40000 mm²
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	4 kg CO2 eq.
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	France, FR
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	98
Width Nominal	nominal: 185 mm
Accessory / Separate Part Category	mounting accessory
Package Weight(Lbs)	364.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	3.7297976092885063
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-09
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2202003EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
