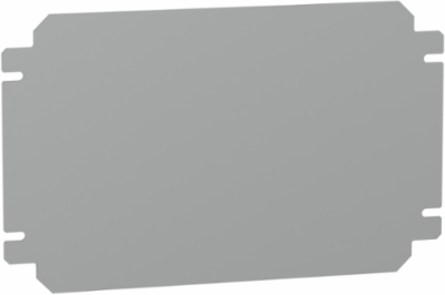

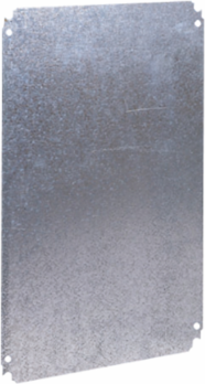

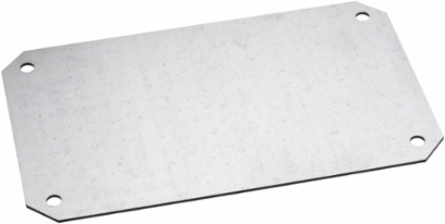

Schneider Electric NSYMM23SB Plain Mounting Plate 200mm x 300mm Galvanised Steel
- MPN: NSYMM23SB
- PPN: SCH-NSYMM23SB
CAD
$21.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Crafted from durable galvanised sheet steel, this plain mounting plate is designed for versatility and reliability in various applications. With dimensions of 200mm in height and 300mm in width, it provides a robust solution for mounting accessories within the PanelSeT range, specifically compatible with PanelSeT SBM models. Weighing just 0.574 kg and featuring a thickness of 2 mm, this mounting plate can support a permanent permissible load of up to 3 kg, making it ideal for securing equipment in a variety of enclosures. The metallic surface finish not only enhances its aesthetic appeal but also contributes to its durability, ensuring it withstands the rigors of industrial environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, India
Width10.39 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 2 kg CO2 eq., 1.6360915268311393
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 3 kg CO2 eq., 3.087257821902429
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Mounting Plate Description
- plain
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Software Version
- v6.1
- Surface Finish
- metallic
- Thickness
- 2 mm
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP2202003EN
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27

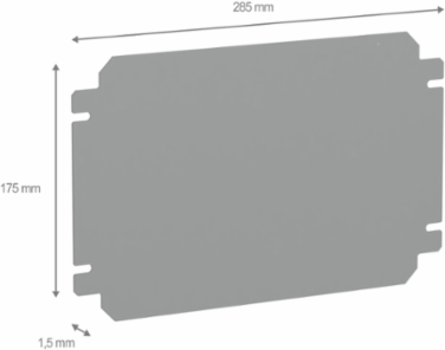

- Height Nominal
- nominal: 175 mm
- Width Real
- fixing centers: 264 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A41.1395752203940952, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.018679353211904892, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-04-18
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 mounting plate
Fixing Modeby 2 screws Ø5 mm self-tapping screws - bottom of enclosure
Mounting Locationbottom of enclosure
Permanent Permissible Load3 kg back of the enclosure
Product Or Component Typemounting plate
ReturnabilityNo
Surface And Useful Surfacenominal 60000 mm²
Sustainable PackagingNo
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Warranty In Months18
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %98
Width Nominalnominal: 285 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 5.881603922339568
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2202003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
