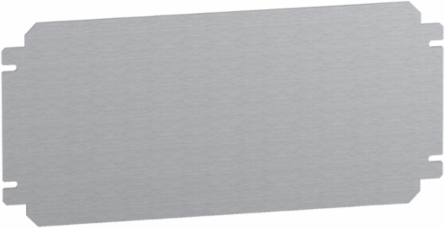

Schneider Electric NSYMM35SB Mounting Plate 300mm Height x 500mm Width Galvanized Steel
- MPN: NSYMM35SB
- PPN: SCH-NSYMM35SB
CAD
$55.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, this plain mounting plate from Schneider Electric is crafted from high-quality galvanized sheet steel, ensuring longevity and resistance to corrosion. With dimensions of 300mm in height and 500mm in width, this mounting plate is compatible with the PanelSeT SBM range, making it an ideal solution for various applications. The plate features a nominal surface area of 150,000 mm² and can support a permanent load of up to 7.5 kg, making it suitable for multi-purpose use. Weighing just 2.06 kg and with a thickness of 2 mm, it is designed for easy installation at the bottom of an enclosure using self-tapping screws. This product is a reliable choice for those looking to enhance their panel setups with a robust and functional mounting accessory.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, India
Width18.27 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 6 kg CO2 eq., 6.0142040446231775
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 11 kg CO2 eq., 11.348630669362587
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Mounting Plate Description
- plain
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Software Version
- v6.1
- Surface Finish
- metallic
- Thickness
- 2 mm
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP2202003EN
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal

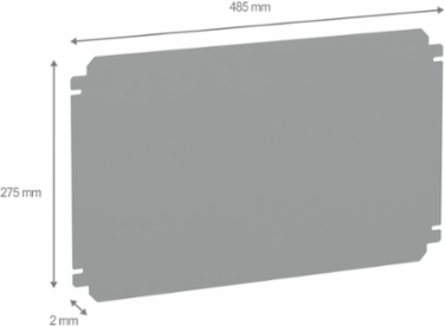

- nominal: 275 mm
