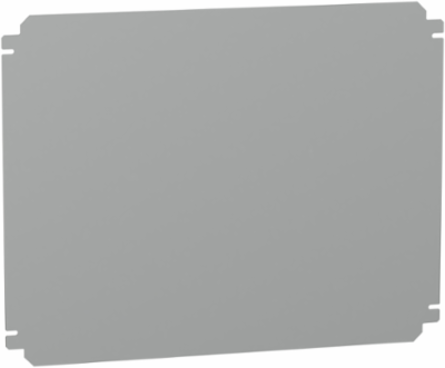

Schneider Electric NSYMM45SB Plain Mounting Plate 400mm x 500mm Galvanized Steel, 2mm Thickness
Schneider Electric NSYMM45SB Plain Mounting Plate 400mm x 500mm Galvanized Steel, 2mm Thickness
- MPN: NSYMM45SB
- PPN: SCH-NSYMM45SB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$78.31/ EA
Description
Crafted from durable galvanized sheet steel, this plain mounting plate measures 400mm in height and 500mm in width, making it a versatile solution for various mounting applications. Designed for compatibility with the PanelSeT range, it provides reliable support with a permanent permissible load of up to 10 kg when securely fastened at the bottom of an enclosure. With a thickness of 2mm and a metallic surface finish, this mounting plate not only ensures stability but also complements the aesthetic of your installations. Weighing just 2.816 kg, it is easy to handle and install, making it an ideal choice for both professional and DIY projects.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 8 kg CO2 eq., 8.026539615952071
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 15 kg CO2 eq., 15.145850220343624
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- 1 mounting plate
- Fixing Mode
- by 2 screws Ø5 mm self-tapping screws - bottom of enclosure
- Mounting Location
- bottom of enclosure
- Permanent Permissible Load
- 10 kg back of the enclosure
- Product Or Component Type
- mounting plate
- Returnability
- No
- Surface And Useful Surface
- nominal 200000 mm²
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 29 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional Unit Unit
- Unit
- Reference Lifetime In Y2
- 20
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Offer Owner Code
- 190789

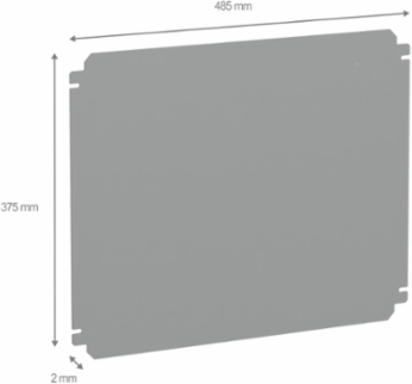

- Height Useful
- nominal: 375 mm
- Width Real
- fixing centers: 485 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A45.590668677055352, 6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.09163947499080868, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Return IndicatorN
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Materialgalvanised steel
Mounting Plate Descriptionplain
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Software Versionv6.1
Surface Finishmetallic
Thickness2 mm
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP2202003EN
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G22816
Energy Model Manufacturing A1 A3 2France, FR
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In 298
Height Nominalnominal: 375 mm
Width Nominalnominal: 485 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 28.854697988341858
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2202003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 14.76 in
Width19.09 in
