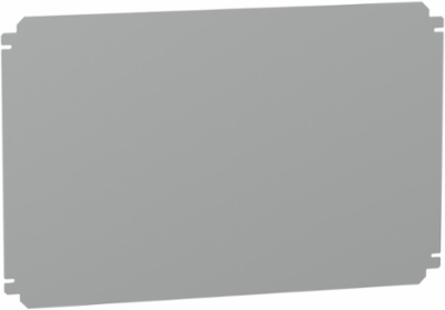

Schneider Electric NSYMM46SB Galvanized Steel Mounting Plate 400mm x 600mm, 2mm Thick, 12kg Load
Schneider Electric NSYMM46SB Galvanized Steel Mounting Plate 400mm x 600mm, 2mm Thick, 12kg Load
- MPN: NSYMM46SB
- PPN: SCH-NSYMM46SB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$93.34/ EA
Description
Crafted by Schneider Electric, this plain mounting plate is designed to provide a robust and reliable foundation for various applications. Made from high-quality galvanized sheet steel, it boasts a sturdy construction with a thickness of 2 mm, ensuring durability and strength for mounting needs. With nominal dimensions of 400 mm in height and 600 mm in width, this versatile accessory is compatible with the PanelSeT range, making it an ideal choice for multi-purpose use. Weighing in at just 3.412 kg, it can support a permanent permissible load of up to 12 kg when securely fixed to the bottom of the enclosure with self-tapping screws. This mounting plate is not only functional but also contributes to a sustainable approach with its environmentally conscious design.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 10 kg CO2 eq., 9.725338483532834
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 18 kg CO2 eq., 18.351434997092486
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Legacy Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Mounting Plate Description
- plain
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Software Version
- v6.1
- Surface Finish
- metallic
- Thickness
- 2 mm
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP2202003EN
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Product Weight In G2
- 3412
- Energy Model Manufacturing A1 A3 2
- France, FR
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In 2
- 98

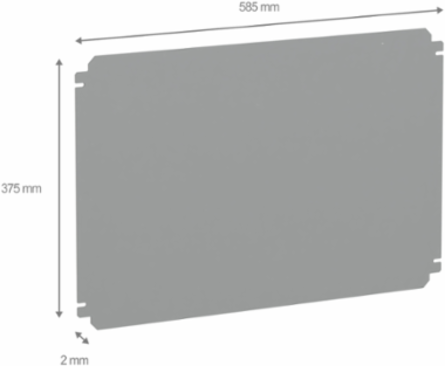

- Height Nominal
- nominal: 375 mm
- Width Nominal
- nominal: 585 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A46.773920996488942, 7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.11103476160107925, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 mounting plate
Fixing Modeby 2 screws Ø5 mm self-tapping screws - bottom of enclosure
Mounting Locationbottom of enclosure
Permanent Permissible Load12 kg back of the enclosure
Product Or Component Typemounting plate
ReturnabilityNo
Surface And Useful Surfacenominal 240000 mm²
Sustainable PackagingNo
Total Lifecycle Carbon Footprint35 kg CO2 eq.
Warranty In Months18
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit UnitUnit
Reference Lifetime In Y220
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Offer Owner Code190789
Height Usefulnominal: 375 mm
Width Realfixing centers: 585 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 34.96172923871534
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2202003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 14.76 in
- Country of Origin
- India
Width23.03 in
