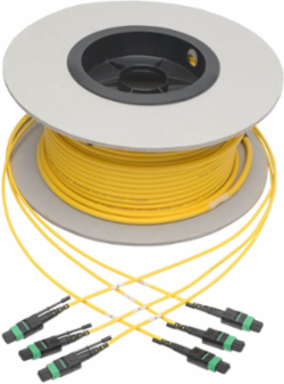

Tripp Lite N392-61M-3X8-AP MTP/MPO Singlemode Slim Trunk Cable, 24-Strand, 61 m (200 ft.)
- MPN: N392-61M-3X8-AP
- UPC: 037332205490
- PPN: TRP-N392-61M-3X8-AP
CAD
$1787.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

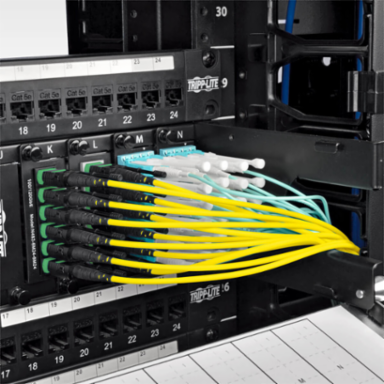

Premium 8.3/125 singlemode fiber optic cabling for transmitting 40/100 Gb data and voice signals. Designed for high-density connections between network equipment in telecom rooms and data centers.
Features
- Push/pull tab connectors easily install/remove with one hand

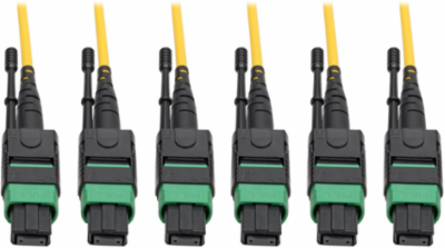

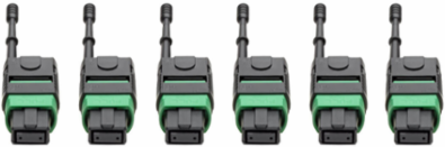

- Factory-terminated 8-fiber MTP/MPO connectors
- Angled APC connectors protect laser against destabilization
- 100% tested for low insertion loss and back reflection
- Yellow color for easy singlemode identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Number of Fibers | 8 |
|---|---|
| Fiber Type | Singlemode 8.3/125 |
| Cable Diameter | 6 mm |
| Clad Diameter | 125 micron |
| Connector Type | MTP/MPO, 8-fiber Female (3 per end) |
| Operating Temperature Range | -4 to 140 F (-20 to 60 C) |
| Jacket Rating | Plenum |
| Network Speed | 10Gbps, 40Gbps, 100Gbps Ethernet |
|---|---|
| Cable Length | 200 ft (2401.6 in.) |
| Core Diameter | 8.3 micron |
| Cable Color | Yellow |
| Push/Pull Tabs | Yes |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Warranty | Lifetime limited warranty |
