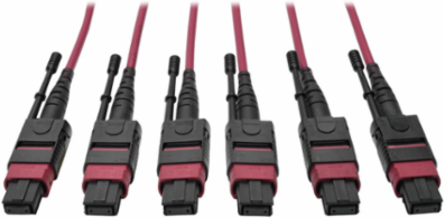

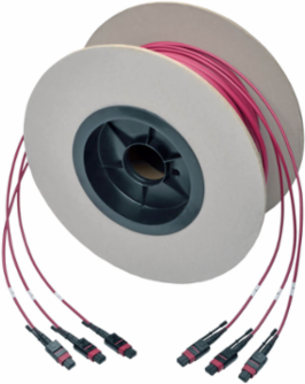

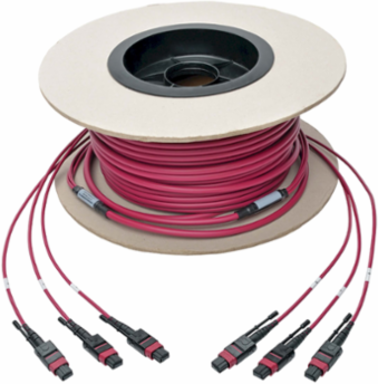

Tripp Lite N858-61M-3X8-MG MTP/MPO 24-Strand Multimode Trunk Cable, 61 m (200 ft), OM4, Magenta
- MPN: N858-61M-3X8-MG
- UPC: 037332200235
- PPN: TRP-N858-61M-3X8-MG
CAD
$4585.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

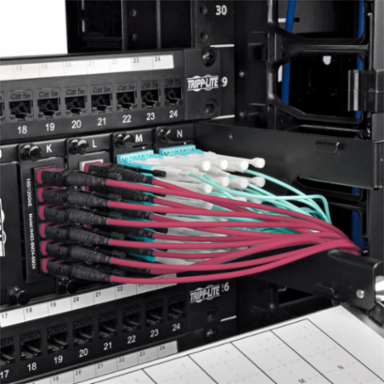

Premium multimode fiber optic cabling for transmitting 40/100 Gb data and voice signals. Designed for high-density connections between network equipment in telecom rooms and data centers.
Features
- Push/pull tab connectors install/remove with one hand
- 8-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- 50/125 OM4-rated multimode fiber
- Magenta color for easy OM4 identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Network Speed | 10/40/100 Gbps |
|---|---|
| Attenuation @ 1300 nm | 1.0 dB/Km |
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Number of Fibers | 8 |
| Core Diameter | 50 micron |
| Connector Type | (3) 8-Strand MTP (female) each end |
| Color | Magenta |
| Technology | Multimode; MTP/MPO |
| Attenuation @ 850 nm | 3.0 dB/Km |
|---|---|
| Operating Temperature Range | -20 to 60 C (-4 to 140 F) |
| Cable Length | 61 m (200 ft) |
| Optical Mode | OM4 |
| Clad Diameter | 125 micron |
| Push/Pull Tabs | Yes |
| Product Warranty Period | Lifetime limited warranty |
