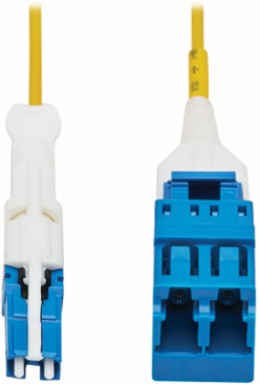

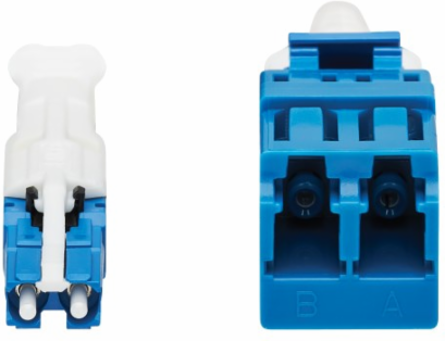

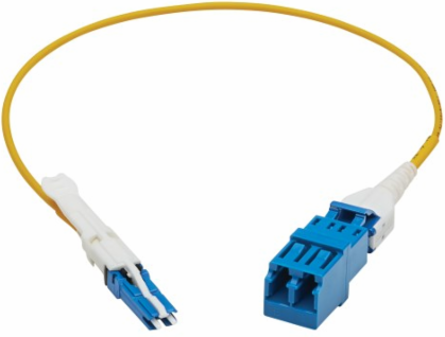

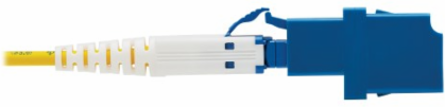

Tripp Lite N381L001MF 400G Duplex Singlemode 9/125 OS2 Fiber Optic Cable Adapter, CS-UPC/LC-UPC, M/F, LSZH, Yellow, 1 ft
- MPN: N381L001MF
- UPC: 037332260116
- PPN: TRP-N381L-001-MF
CAD
$73.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Duplex Singlemode 9/125 OS2 Fiber Optic Cable Adapter (CS-UPC/LC-UPC), M/F, Round LSZH Jacket, Yellow, 1 ft
Documentation & Downloads
Specifications
Material
| Technology | Singlemode |
|---|---|
| Cable Jacket Color | Yellow |
| Cable Jacket Material | LSZH |
| Endface Polish | UPC |
|---|---|
| Connector Color | Blue, White |
| Cable Jacket Rating | OFNR |
Dimensions
| Cable Length | 1 ft (0.3 m) |
|---|---|
| Clad Diameter | 125 |
| Primary Coating Diameter | 600 |
| Side A - Connector 1 | CS DUPLEX (MALE) |
| Push/Pull Tabs | Yes |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
|---|---|
| Core Diameter | 9 |
| Number of Fibers | 2 |
| Side B - Connector 1 | LC DUPLEX (FEMALE) |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
Performance
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 1310NM | 0.36 dB/km |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Transmission Distance | 2KM @ 1310NM Wavelength |
|---|---|
| Attenuation @ 1550NM | 0.22 dB/km |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
