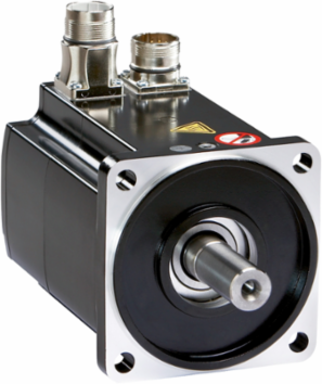

Schneider Electric BMH2051P12A2A servo motor BMH, Lexium 32, 34.4Nm, 3800rpm, keyed shaft, without brake, IP54, 128 multiturn encoder
- MPN: BMH2051P12A2A
- PPN: SCH-BMH2051P12A2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
servo motor BMH, Lexium 32, 34.4Nm, 3800rpm, keyed shaft, without brake, IP54, 128 multiturn encoder
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Key Width
- 70 mm
- Shaft Length
- 80 mm
Motor Flange Size205 mm
Complementary Attributes
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Mechanical Speed
- 3800 rpm
- Maximum Radial Force Fr
- 3730 N 1000 rpm2960 N 2000 rpm2580 N 3000 rpm
Maximum Current Irms72 A LXM32.D72N4
Maximum Permanent Current78.1 A
Important Information Attributes
- Coefficient 1 1
- -0.0044666666667672 N.m/rpm, -0.0044666666667672 N.m/rpm
- Coefficient 1 5
- -4.0050027E-26 N.m/rpm5, -4.0050027E-26 N.m/rpm5
- Nominal Speed
- 2000 rpm LXM32.D72N4 24 A, 400 V, three phase, 2000 rpm LXM32.D72N4 24 A, 480 V, three phase
- Peak Stall Torque
- 103.4 N.m LXM32.D72N4 24 A, 400 V, three phase, 103.4 N.m LXM32.D72N4 24 A, 480 V, three phase
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Centring Collar Diameter
- 180 mm
- Coefficient 1 2
- 3.062583494118E-16 N.m/rpm²
- Coefficient 1 6
- 3.50827E-30 N.m/rpm6
- Continuous Power
- 6.8 W
- Device Short Name
- BMH
- Feedback Type
- multiturn SinCos Hiperface
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- international standard flange
- Number Of Motor Poles
- 10
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft End
- keyed
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Stator Inductance
- 5.9 mH 20 °C
- Sustainable Packaging
- No
- Temperature Magnet Hot
- 100 °C
- Type Of Cooling
- natural convection
- Pep Code
- ENVPEP111049EN
- [Us] Rated Supply Voltage
- 480 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501524000
Coefficient 1 3-3.404680554E-19 N.m/rpm3, -3.404680554E-19 N.m/rpm3
Continuous Stall Torque34.4 N.m LXM32.D72N4 24 A, 400 V, three phase, 34.4 N.m LXM32.D72N4 24 A, 480 V, three phase
Nominal Torque25.8 N.m LXM32.D72N4 24 A, 400 V, three phase, 25.8 N.m LXM32.D72N4 24 A, 480 V, three phase
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes215 mm
Coefficient 1 41.717521E-22 N.m/rpm4
Coefficient 2 10 N.m/rpm
Continuous Stall Current21.5 A
Electrical Connectionrotatable right-angled connectors
Holding Brakewithout
Mounting Holes Diameter14 mm
Network Number Of Phases3
Number Of Motor Stacks1
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia71.4 kg.cm²
Shaft Diameter38 mm
Sizing ReferenceBMH2051P
Stator Electrical Time Constant19.7 ms 20 °C
Stator Resistance0.3 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Length Total321 mm
Accuracy Error [Angular]1.4 °
Package Weight(Lbs)39.0 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP111049EN
- Ip Degree Of Protection
- IP54 standard
- Pep Code
- ENVPEP111049EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Product CompatibilityLXM32.D72N4 400...480 V three phase
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 5400 W LXM32.D72N4 24 A, 400 V, three phase, 5400 W LXM32.D72N4 24 A, 480 V, three phase
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
