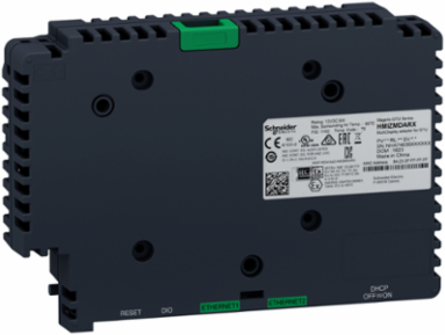

Schneider Electric HMIZMDARX Multi Display Adapter, 12 V DC, 188 mm Width, 0.8 kg Weight
- MPN: HMIZMDARX
- PPN: SCH-HMIZMDARX
- UNSPSC: 43211506
CAD
$907.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Enhance your automation and control systems with the Multi Display Adapter from Schneider Electric. Designed for ease of integration, this adapter operates at 12 V DC and plays a crucial role in connecting and managing multiple display units effectively. Its compact width of 188 mm ensures it fits seamlessly into various setups, offering a reliable solution for HMI accessories. Weighing in at 0.8 kg, it's built for both durability and functionality, making it an essential component for any advanced PLC or data acquisition project.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 35 mm |
|---|
Complementary Attributes
| Integrated Connection Type | 1 DIO terminal block 3 inputs + 1 output2 Ethernet TCP/IP RJ45 jack |
|---|
| Us Rated Supply Voltage | 12 V DC module supply |
|---|
Important Information Attributes
| Environmental Characteristic | corrosive gas free, dustproof |
|---|---|
| Certificate Agency | UL 508, CSA C22-2 No 142, CSA C22-2 No 213, cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01, IEC-Ex, ATEX zone 2/22, EAC, UKCA, UKEX |
| Local Publishable Date | 2026-01-12 |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2514 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Resistance To Fast Transients | 1 kV IEC 61000-4-4 signal ports)2 kV IEC 61000-4-4 power ports) |
| Shock Resistance | 147 m/s²X, Y, Z directions for 3 times IEC 61131-2 |
| Type Of Cooling | natural |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 188 mm |
| Accessory / Separate Part Destination | Harmony GTU display |
| Nbr. Of Units In Pkg. | 1 |
| F Gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Silicone Free | No |
| Local Signalling | LED green, steady operating status (RUN)LED green, faded stand-by, LED green/orange, alternate program mode, LED orange, flashing establishing communication connectionLED red, steady power ONLED green, orange and red, alternate ERROR (fault) |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Power Consumption In W | 8 W |
| Range Of Product | Harmony GTU |
| Returnability | No |
| Sustainable Packaging | No |
| Vibration Resistance | 3.5 mm constant amplitude 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² constant acceleration 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 |
| Height Nominal | 131 mm |
| Accessory / Separate Part Category | adaptation accessory |
| Accessory / Separate Part Type | adaptor |
| Customs Code | 8517620090 |
| Halogen Free Status | Product contains halogen above thresholds |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -20-60 °C, -20-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| F Gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Product Compatibility | Harmony GTU open, Harmony iPC industrial PCs |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
General Attributes
| Range Of Product | Harmony GTU |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|---|
| ETIM 10 | EC002584 |
| ETIM 9 | EC002584 |
|---|
Output Attributes
| Output Current | 50 mA |
|---|---|
| Output Voltage Type | DC |
| Output Voltage | 24 V |
|---|
Input Attributes
| Input Voltage | 12 V DC module supply, 24 V DC |
|---|
