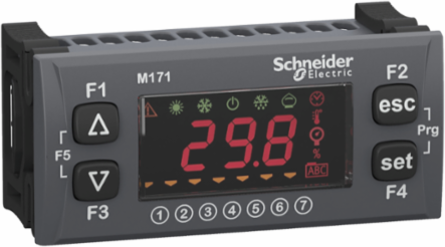

Schneider Electric TM171DLED Modicon M171 Optimized Display LED
Schneider Electric TM171DLED Modicon M171 Optimized Display LED
- MPN: TM171DLED
- PPN: SCH-TM171DLED
- UNSPSC: 32151703
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$81.74/ EA
Description
This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This LCD display is an accessory to the M171 optimized controllers. It is a flush mounting displays with realtime clock. It is connected to the LAN expansion bus which provides its power supply. It figures a 7-button keyboard, and one Communication port for LAN expansion bus. Its rated supply voltage is 12VDC. It measures 74mm high, 32mm wide, and 30mm deep, and weighs 0.042kg. It allows remote control of the HVAC controller. It is certified by cURus. It is compatible with M171 optimized logic controllers. It is sold in a 1-piece package, including a LAN expansion bus connector. It is wall mounted, with 6 holes of 4.2 mm or 6x 2.7mm in diameter. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Features
- Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
- Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
- All of the features and functions you need to design and build machines more profitably are already embedded
- Application Function Blocks reduce energy consumption and help to improve system efficiency
Specifications
Physical Attributes
- Color
- Gray
Display Colormonochrome
Conformance Attributes
- Product Certifications
- cURus
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Power Consumption In W
- 5 W, 0 W
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Display Color
- monochrome
- Local Signalling
- LED
- Package Weight Lbs
- 129.000 g
- Product Or Component Type
- display module
- Returnability
- No
- Sustainable Packaging
- Yes
- Us Rated Supply Voltage2
- 12 V DC
- Stocking Flag
- Y
- Global Commercial Status
- End of commerc. announced
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Return IndicatorN
Function OptionStandard
Market SegmentationIndustrial
Display Type7 segments LED + decimal point
MarkingCE
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon M171
Supplyexternal source
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Medium DescModicon M171 Optimized Display LED
Product Kit IdentifierN
Us Rated Supply Voltage512 V DC
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- IP Degree Of Protection
- IP20
- Product Compatibility
- logic controller M171 optimized
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- display module
Range Of ProductModicon M171
Specifications
- Country of Origin
- Sweden
Depth30 mm
