Pass & Seymour

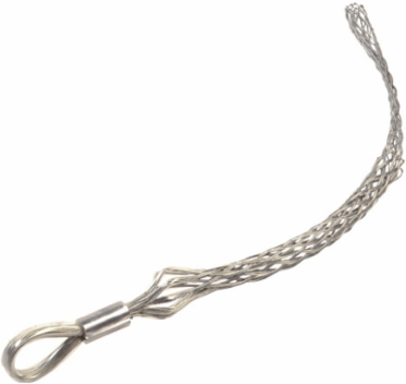

Pass & Seymour P2501 Multi-Weave Rotating Eye Grip - 2.500-2.990 Inch Cable Dia, 52 Inch Mesh Length, 48,000 lbs Break Strength

Multi-Weave Rotating Eye Grip - 2.500-2.990 Inch Cable Dia, 52 Inch Mesh Length, 48,000 lbs Break Strength
  • MPN: P2501
  • UPC: 785007991970
  • PPN: P-S-P2501

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$306.82/ EA

Description

Multi-Weave, Rotating Eye. Cable Diameter - 2.500-2.990-inch, Mesh Length - 52-inch, Eye Diameter - 1 7/8-inch, Break Strength - 48,000 lbs, Orange.

Features

  • Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables.
  • These grips are used in applications such as distribution line stringing and overhead transmission.
  • Multi-weave pulling grips are available with a flexible and rotating eye, which can be attached to a swivel.
  • Description : Rotating Eye: The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension.
  • The rotating eye can turn to relieve pulling torque when tension is relaxed.
  • Mesh Length: 52: Eye Diamater: 1-7/8

Specifications

Specifications

Country of Origin
Mexico
Eye Style
Rotating
Mesh Length
72.0 in
Minimum Cable Range
2.99 in
Cable Diameter Range
2.50-3.00 in
Capacity
Various Cable Diameter Ranges
Mounting
Consult the Factory for Mounting Recommendations
Special Features
Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables. These grips are used in applications such as distribution line stringing and overhead transmission. Multi-weave pulling grips are available with a flexible and rotating eye, which can be attached to a swivel. The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension. The rotating eye can turn to relieve pulling torque when tension is relaxed.
TypePulling Grip
Indoor/OutdoorBoth
Maximum Cable Range2.5 in
Application SectorIndustrial
Approximate Break Strength43000.0 lb
StandardUL/CSA Approval (consult factory)
ConstructionVarious Types of Pulling, Support and Strain Relief Grips
Product LinePass & Seymour
