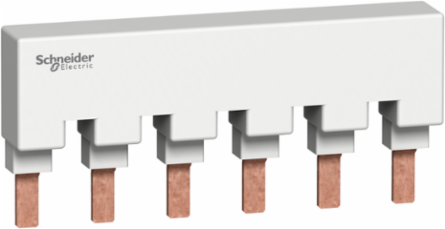

Schneider Electric M9XUP306 Multi9 Comb Busbar, 3L, 6 Modules, 115A, 108 mm Width, 18 mm Pitch
- MPN: M9XUP306
- PPN: SCH-M9XUP306
CAD
$88.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Multi9 Comb Busbar from Schneider Electric is designed to streamline power distribution in compact electrical installations. Featuring a robust build that accommodates three phases and six modules, this busbar supports a maximum current of 115A, ensuring reliable performance for various applications. With an 108 mm width and an 18 mm pitch, it provides a flexible solution for panel builders, enhancing efficiency and connectivity while maintaining compact design preferences. Ideal for integrating with miniature circuit breakers, this product represents a practical choice for modern electrical systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Physical Attributes
- Color
- Light gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Carbon Footprint Of The Distribution Phase [A4]
- 0.015358531500949565, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0010657542929713474, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 kg CO2 eq., 2.2289538700192475
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Connector Type
- tooth
- Distribution Type
- L1 L2 L3
- Fire Resistance
- 960 °C 30 s ) IEC 60695-2-1
- Lines Description
- 3L
- Mounting Mode
- horizontal
- Poles Configuration For 1 Way
- 1 x 3P
- Product Or Component Type
- comb busbar
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Number Of 18 Mm Modules
- 6
- Total Nb Of Modules 18 Mm
- 6
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Poland, PL
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 67
- Certificate Agency
- cULus
- [Ue] Rated Operational Voltage
- 480 V AC 50/60 Hz Ph/Ph277 V AC 50/60 Hz Ph/N
- Accessory / Separate Part Category
- connection accessory
- Package Weight(Lbs)
- 79.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.16623464550177347
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.38530995616942576
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1922
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Connection Pitch18 mm
Distance Between Way54 mm
Energy Efficiency OptimizedFalse
Insulationinsulated
Mounting Locationtop tunnel type terminals
Number Of Ways2 ways 3 L
Product AvailabilityStock - Normally stocked in distribution facility
RangeMulti9
Software Versionv6.2.4
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2503006EN
Pep Verification Date2025-04-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal108 mm
[Ie] Rated Operational Current115 A 40 °C
[Ui] Rated Insulation Voltage1000 V AC 50/60 Hz UL 508
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- 9 Mm Pitches
- 12
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint2.7969227574843676
Environmental DisclosureENVPEP2503006EN
Ip Degree Of ProtectionIP20 with end-pieces and tooth covers
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2503006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- comb busbar
ETIM
- ETIM 8
- EC000215
ETIM 9EC000215
Overview Attributes
- Device Presentation
- uncuttable
