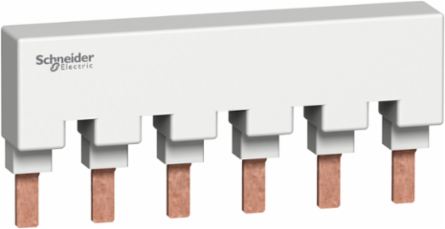

Schneider Electric M9XUP106 Multi9 Comb Busbar 6 Modules, 115A, 18 mm Pitch, 108 mm Width
- MPN: M9XUP106
- PPN: SCH-M9XUP106
- UNSPSC: 39121117
CAD
$71.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Multi9 Comb Busbar from Schneider Electric is engineered to enhance your power distribution systems with its robust design and impressive capacity. Supporting up to 115A across six modules, this busbar is a vital component for ensuring efficient operation in miniature circuit breaker applications. With an 18 mm pitch and a width of 108 mm, it's designed for seamless integration into existing setups, enabling reliable electrical connections and streamlined installation. Whether for new installations or upgrades, this busbar is a practical choice for modern electrical systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 67 g |
|---|
Physical Attributes
| Color | Light gray RAL 7035) |
|---|
Complementary Attributes
| Ie Rated Operational Current | 115 A 40 °C |
|---|---|
| Ui Rated Insulation Voltage | 1000 V AC 50/60 Hz UL 508 |
| Ue Rated Operational Voltage | 480 V AC 50/60 Hz Ph/Ph277 V AC 50/60 Hz Ph/N |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SC |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.01302559000713444, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0009038675649250667, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0.5 kg CO2 eq., 0.4714343575751186 |
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Connector Type | tooth |
| Distribution Type | L |
| Fire Resistance | 960 °C 30 s ) IEC 60695-2-1 |
| Lines Description | 1L |
| Mounting Mode | horizontal |
| Poles Configuration For 1 Way | 1 x 1P |
| Product Or Component Type | comb busbar |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Number Of 18 Mm Modules | 6 |
| Total Nb Of Modules 18 Mm | 6 |
| Data Source | extrapolated product |
| Certificate Agency | cULus |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 67 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.14098381327365597 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.3267818615614117 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1922 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Connection Pitch | 18 mm |
| Distance Between Way | 18 mm |
| Energy Efficiency Optimized | False |
| Insulation | insulated |
| Mounting Location | top tunnel type terminals |
| Number Of Ways | 6 ways 1 L |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Multi9 |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Width Nominal | 108 mm |
| Accessory / Separate Part Category | connection accessory |
| Customs Code | 8536908585 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.9531294899822457 |
| Environmental Disclosure | ENVPEP2503006EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-04-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| 9 Mm Pitches | 12 |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP20 with end-pieces and tooth covers |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2503006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | comb busbar |
|---|
ETIM
| ETIM 8 | EC000215 |
|---|---|
| ETIM 10 | EC000215 |
| ETIM 9 | EC000215 |
|---|
Overview Attributes
| Device Presentation | uncuttable |
|---|
